Description

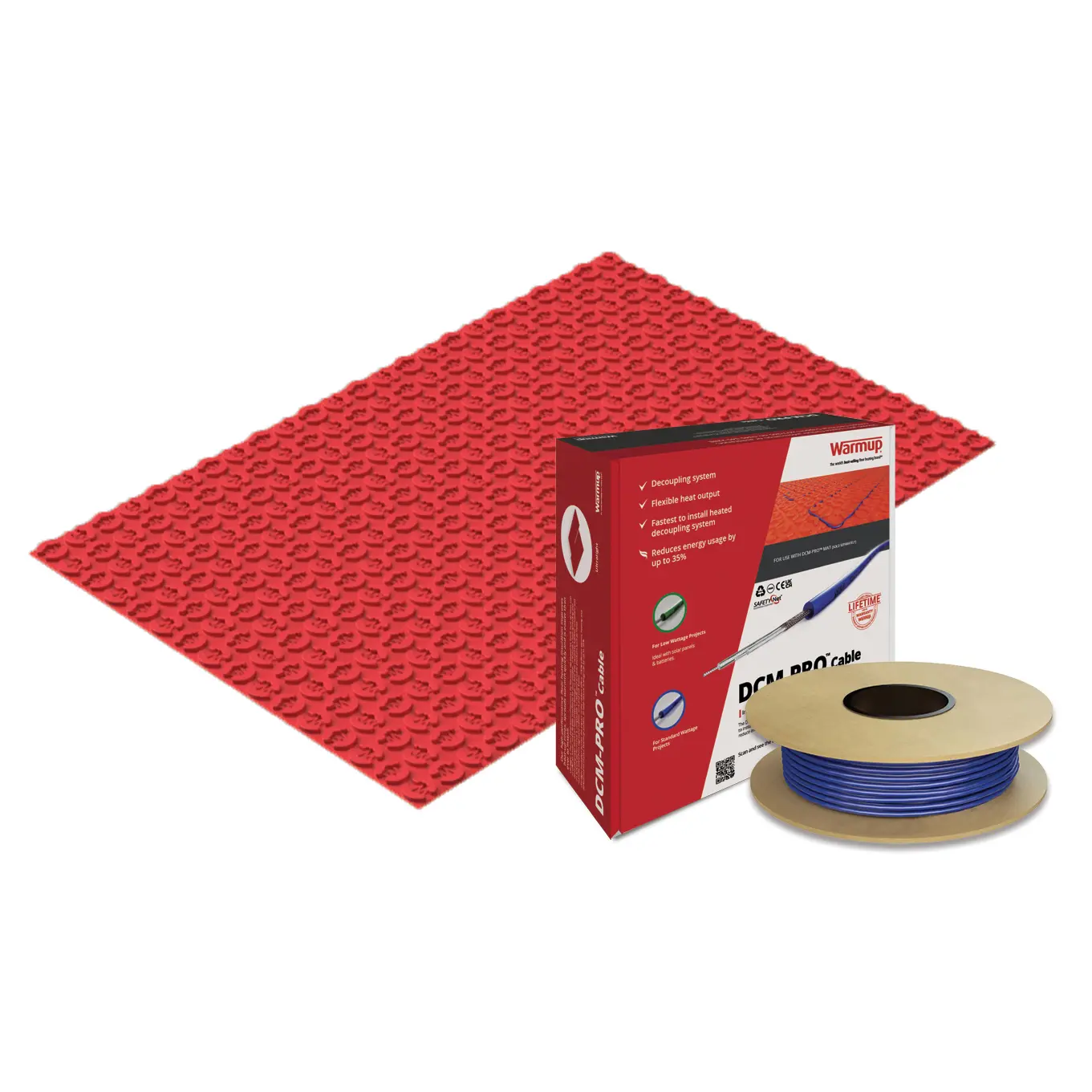

Warmup DCM-PRO Underfloor Heating Cable Cover 225W/1.5m²
The Warmup DCM-PRO Underfloor Heating Cable cover is engineered for optimal floor heating, covering an area of 1.5m² with a length of 16.3 meters. This cable features an output rating of 150W/m² and is approved for safety and compliance with BEAB and European standards.
Technical Specifications
- Output Rating: 150W/m²
- Area Coverage: 1.5m², 16.3m Length
- Material: Advanced Fluoropolymer (ETFE)
- IP Rating: IPX8
- Connection: 3M Long ‘Coldtail’ Connection
- Operating Voltage: 220-240V, 50Hz
Suitable For
- Residential floor heating systems
- Bathrooms and kitchens requiring underfloor heating
- Project installations needing reliable and efficient heating solutions
- Areas with a minimum insulation temperature of 5°C
Note that all measurements provided are estimates, and actual dimensions may vary. Images are intended to provide a general impression of the product and may not reflect the exact appearance.
Specifications
Product Code
DCM-C-1.5
Approved
BEAB & European compliant and CE marked
Area Coverage
1.5m² 16.3m Length
Bar Code
5034526010897
Box Height (Mm)
115
Box Length (Mm)
320
Box Width (Mm)
320
Connection
3M Long ‘Coldtail’ Connection
Dimension Unit
mm
Inner Insulation
Advanced Fluoropolymer (ETFE)
IP Rating
IPX8
Brand
Warmup
Colour
Blue
Manufacturer Guarantee
Life Time Limited & SafetyNet™ Installation Guarantee
Range
DCM-PRO system
Min Insulation Temp
5°C
Operating Voltage
220-240V: 50Hz
Output Rating
150w/m² (3 Castellations – 90mm)
Thickness
4.5mm (± 0.2mm)
Warmup Id
18207
Weight (G)
1,504
DCM-PRO Electric Heating Cable, 225 Watts, 1.5m² 16.3m Length
