Description

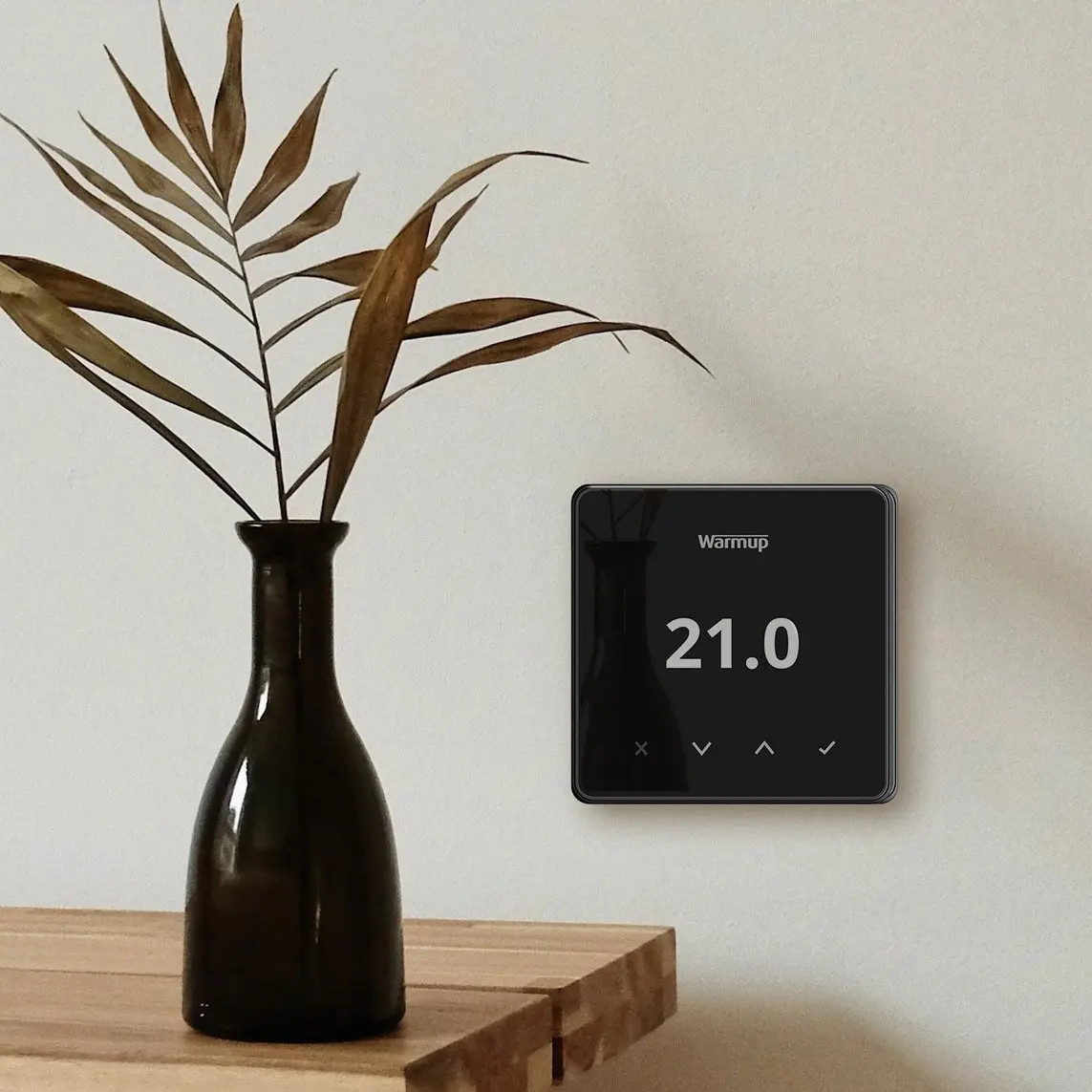

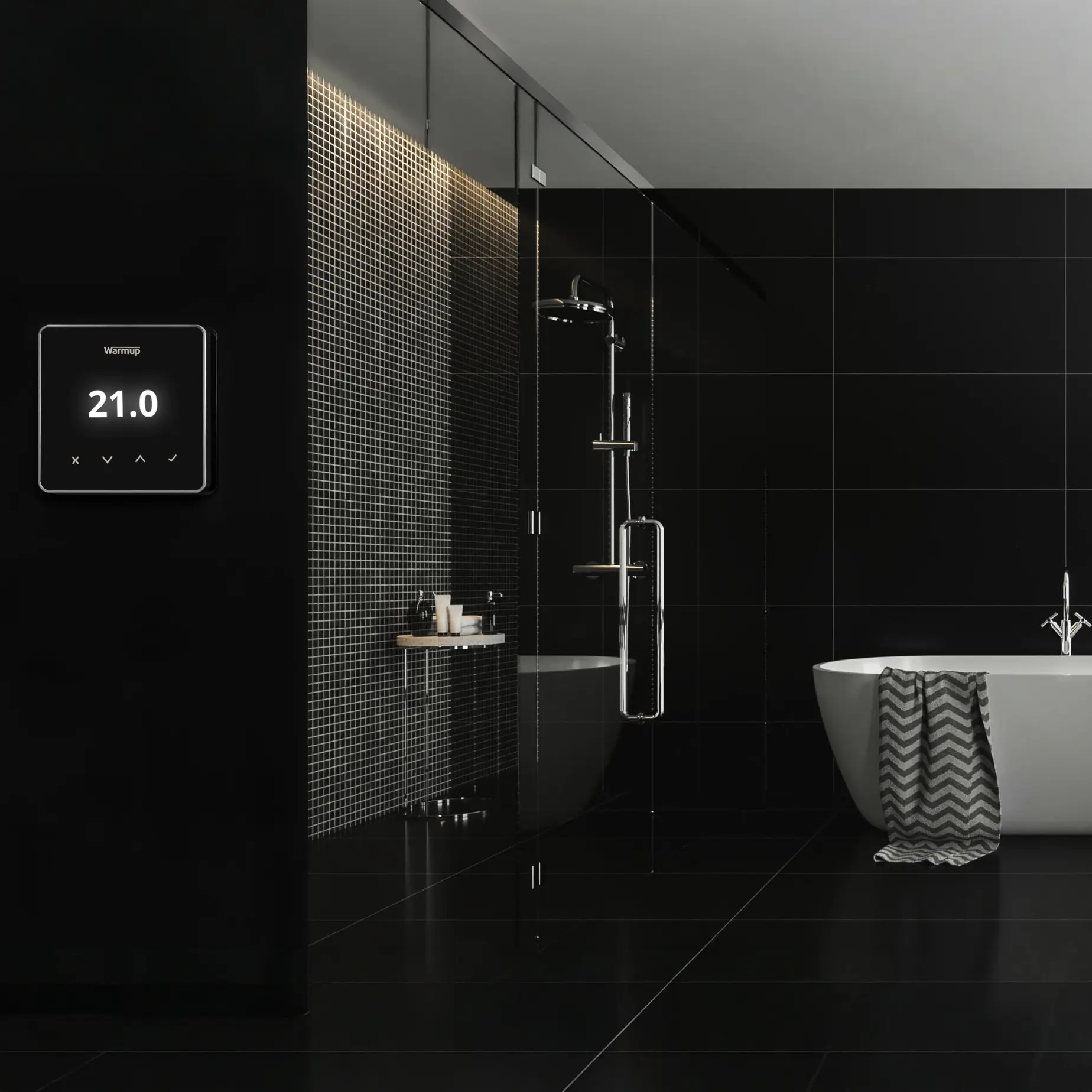

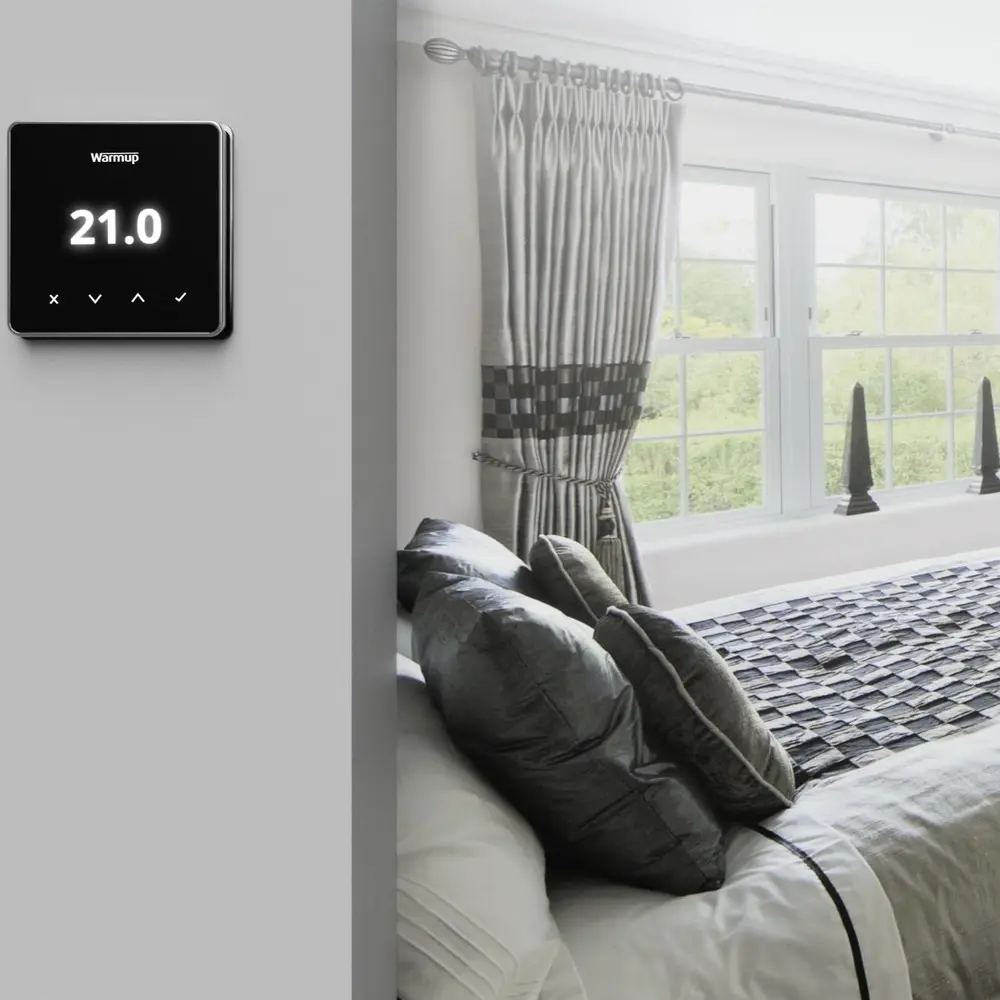

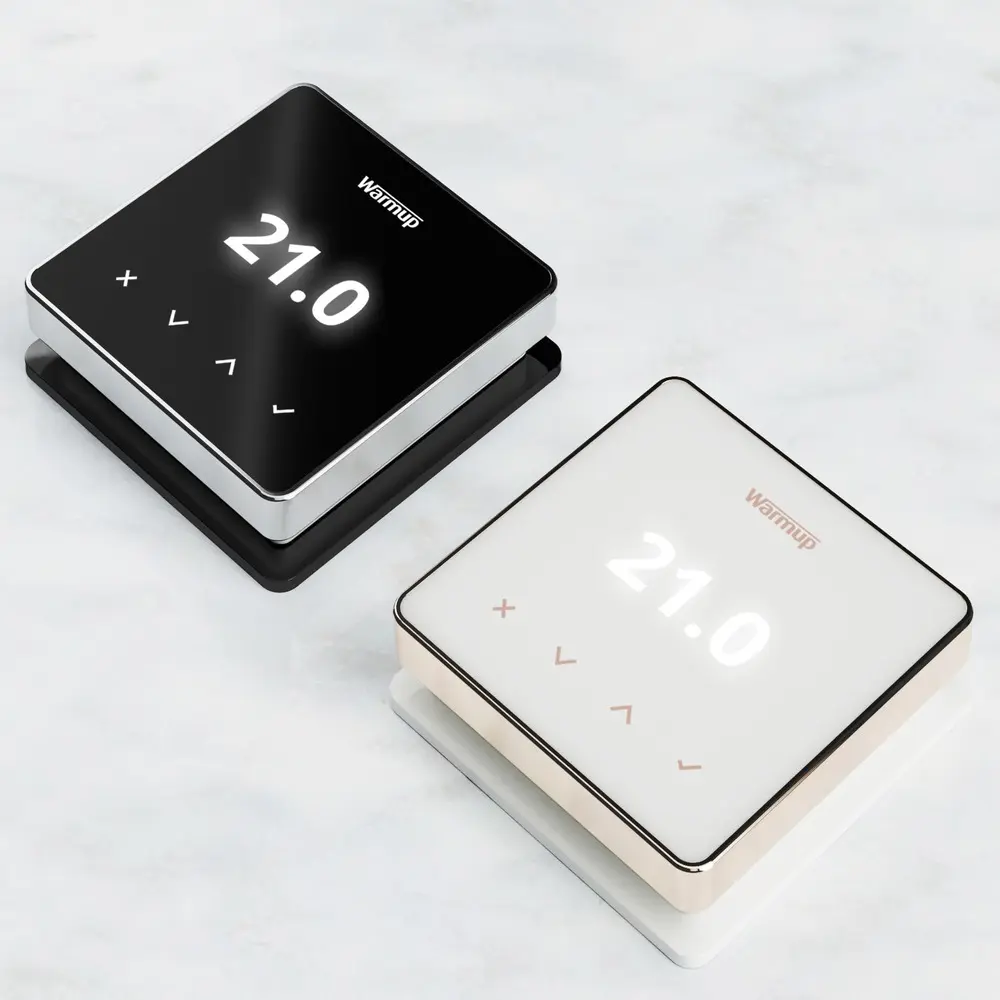

Dark Element WiFi Underfloor Heating Thermostat

The Dark Element WiFi Underfloor Heating Thermostat offers efficient heating control tailored for your household needs.

Key Features

230 V AC constant power requirement
Compatible with electric and hydronic floor heating systems
Supports Combi and System boilers with Switch Live input
IP33 rated, safe from dust and moisture
12-year guarantee with SafetyNet Installation Guarantee
1.8 inch screen size for easy monitoring

Suitable For

Homeowners with electric or hydronic floor heating
Those seeking a WiFi-enabled thermostat for remote control
Users looking for a durable and reliable heating solution

Note that all measurements provided are estimates, and actual dimensions may vary. Images are intended to provide a general impression of the product and may not reflect the exact appearance.

Specifications

Product Code

ELM-01-OB-DC

Approvals

The Element requires 230 V AC power at all times, Compatible with electric and hydronic floor heating systems, Compatible with Combi and System boilers with Switch Live (230 V AC) input, For lower voltage, or volt-free systems, a contactor must be used

Approved

BEAB & European compliant and CE marked

Bar Code

5034526015298

Box Height

Box Length

155

Box Width

165

Compatibility

Dimension Unit

Dimensions

86 x 86 x 16 mm (from the wall)

Er P Class

Floor Sensor Type

NTC10k (3 m long)

Installation Depth

50 mm back box recommended (35 mm minimum)

Ip Rating

IP33

Brand

Warmup

Colour

Dark

Manufacturer Guarantee

12 Years & SafetyNet™ Installation Guarantee

Range

Element

Max Ambient Temperature

40 ºC

Maximum Load

16 A (~3680 W)

Operating Voltage

230 V AC ±15%, 50 Hz

Screen Size

1,8 in

Sensors

Air and Floor

Warmup Id

26547

Weight

290

Warmup Element WiFi Dark Thermostat (Band Colour: Dark Chrome)
