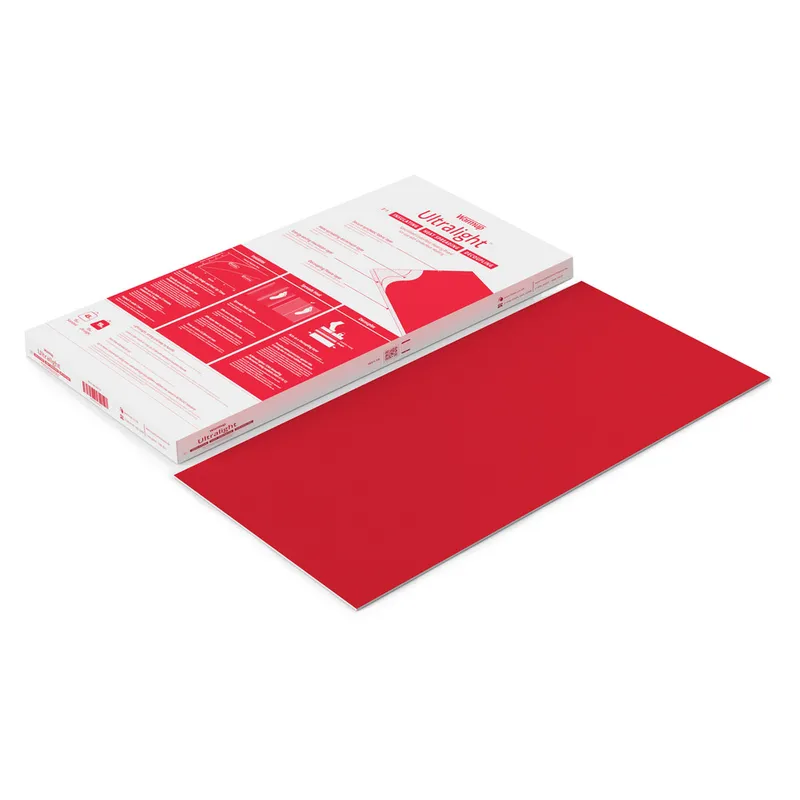

Ultralight Insulation Board - 6mm x 800mm x 1200mm (Pack of 16 / 15.36m²)
Ultralight Insulation Board - 6mm x 800mm x 1,200mm (Pack of 16 / 15.36m²) Adding Warmup Ultralight below underfloor heating can help improve the response time of the system, particularly when installing over screed or concrete
£371.14 Inc. VAT
WCI-16
Size · 15.36m²
- Guarantee
- 10 years
- Lead time
- On request
Description
Description
Sixteen boards to a pack make this the room-sized option of the Warmup Ultralight underfloor heating board, covering 15.36m² in all. Each board is 6mm thick and 800mm x 1200mm, and goes down below the underfloor heating.
Why lay it

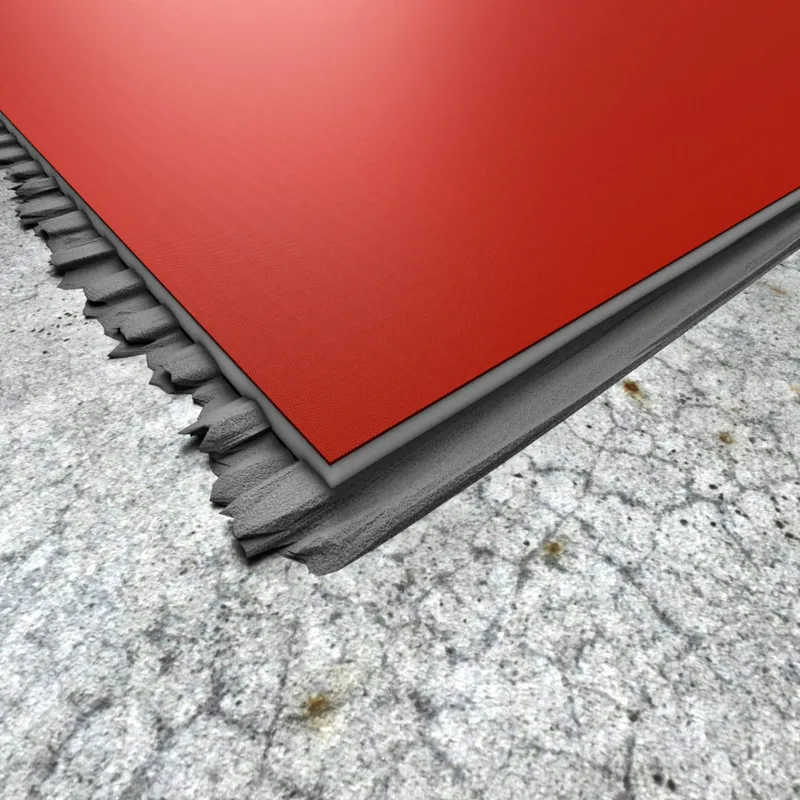

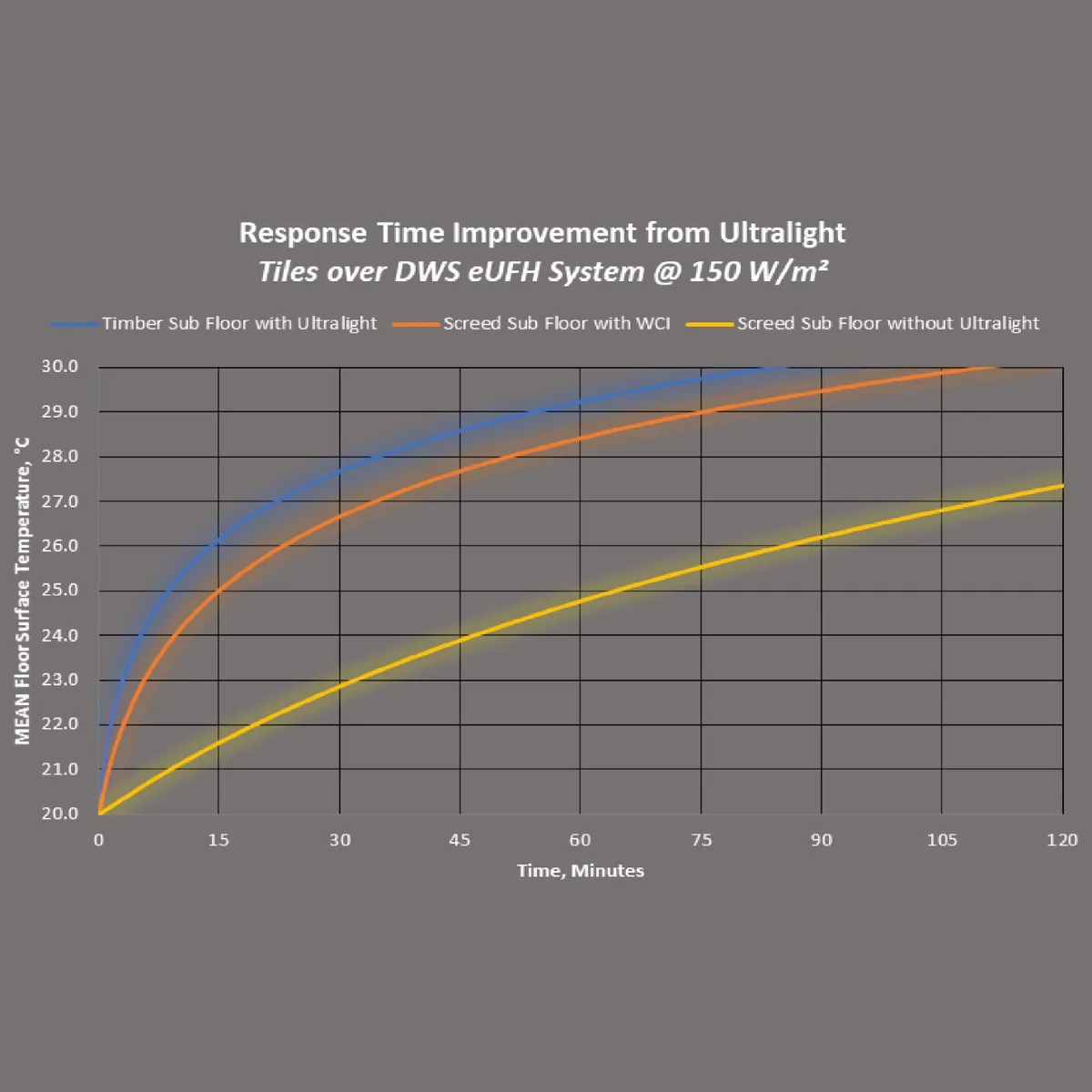

According to Warmup, adding Ultralight under underfloor heating can help improve how quickly the system responds, particularly over screed or concrete, with the board laid between that subfloor and the heater. Its thermal resistance is 0.111 m²K/W, with thermal conductivity of 0.054 W/mK, both to EN 12667.
Specification
- Board dimensions: 6mm x 800mm x 1200mm
- Boards per pack: 16
- Area per pack: 15.36m²
- Thickness tolerance: 6mm ±0.2mm
- Thermal resistance, tested to EN 12667: 0.111 m²K/W
- Thermal conductivity, tested to EN 12667: 0.054 W/mK
- Fire classification: Euroclass E (EN 13501-1, EN ISO 11952-2)
- Range: Warmup Ultralight
- SKU: WCI-16
Measure the floor and divide by 15.36m² to see how many packs to order; for much larger jobs there is a 170-board pallet.
Specification 5
Specification
- Product code
- WCI-16
- Brand
- Warmup
- Range
- Ultralight
- Size
- 15.36m²
- Guarantee
- 10 years
Subject to separate price discount structure
From the manufacturer 10
From the manufacturer
- Barcode
- 5034526015212
- Box width
- 850
- Pack size
- 16 Boards
- Thickness
- 6 mm ±0.2mm
- Box height
- 118
- Box length
- 1,235
- Fire rating
- EN 13501-1, EN ISO 11952-2 Euroclass E
- Product weight
- 19,100 kg
- Thermal resistance
- EN 12667 0.111 m²K/W
- Thermal conductivity
- EN 12667 0.054 W/mK
Documents 2
Documents
Delivery and returns
Delivery and returns
Delivery is charged by weight band, one rate UK-wide, and is free over £500. Ordered from the maker when you pay.
Unfitted items can be returned within 28 days in the original packaging. Start a return with your order number and the address you ordered with — no account needed.
Write a review
CloseUltralight Insulation Board - 6mm x 800mm x 1200mm (Pack of 16 / 15.36m²). Every review is read before it appears, good or bad, and shows as a verified purchase once it matches an order.
You will also need
These parts are needed to install it. Nothing is added to your basket automatically — you may already own them. Press + to add one with this product.
-

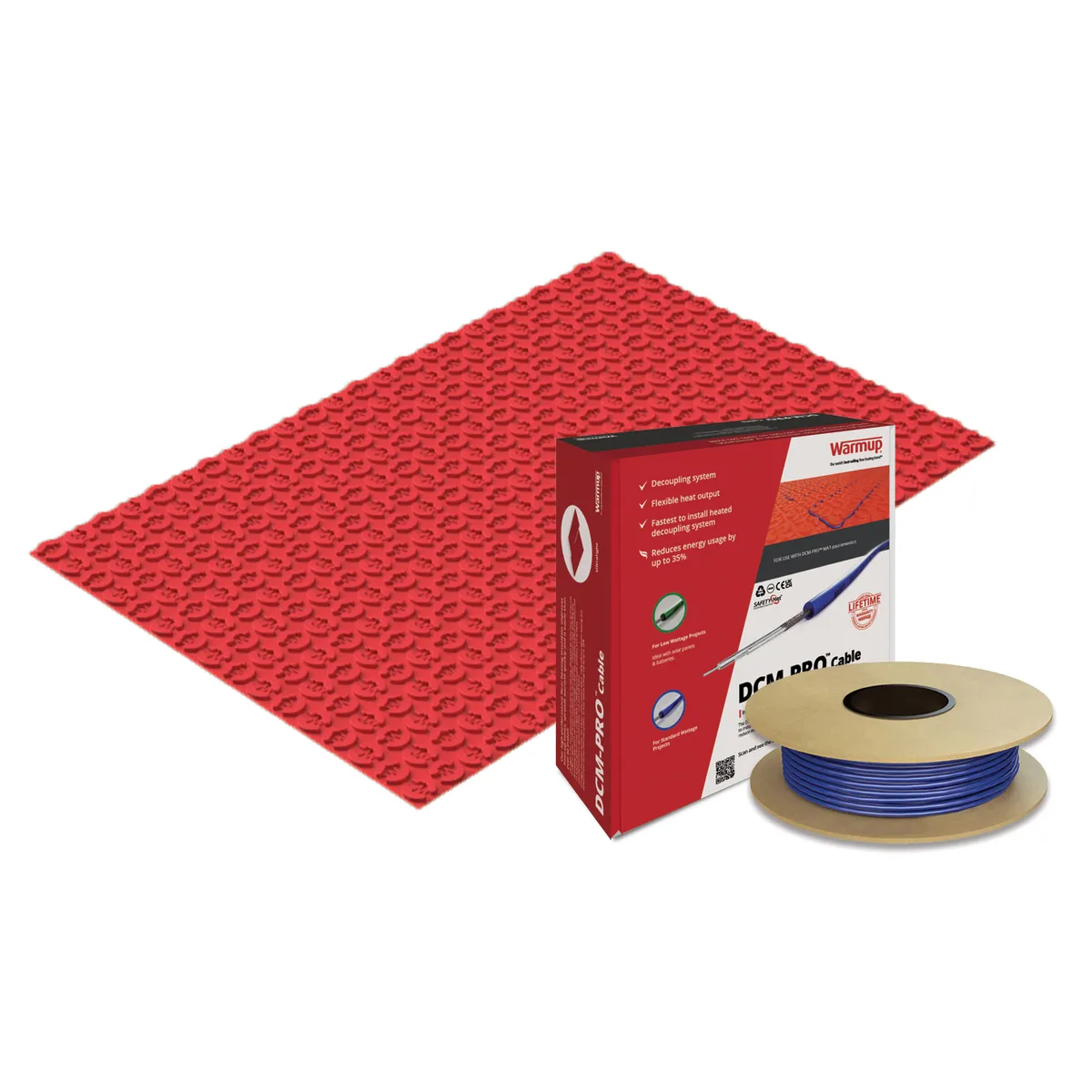

Warmup DCM-PRO Underfloor Heating Cable DCM-C-1
-

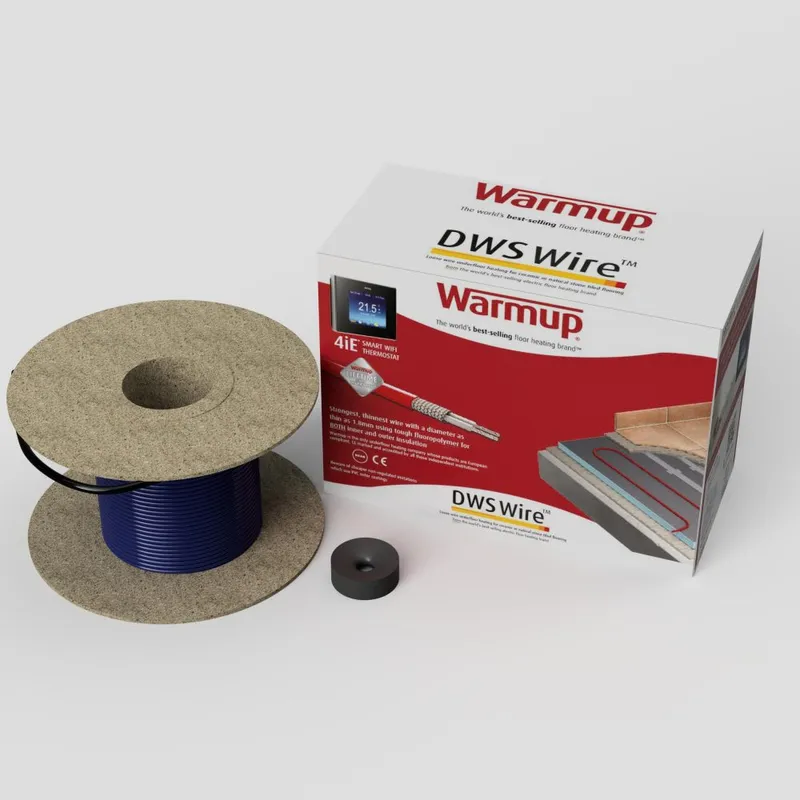

Loose Wire Electric underfloor heating Cover 1.5 to 2.4m² DWS300
-

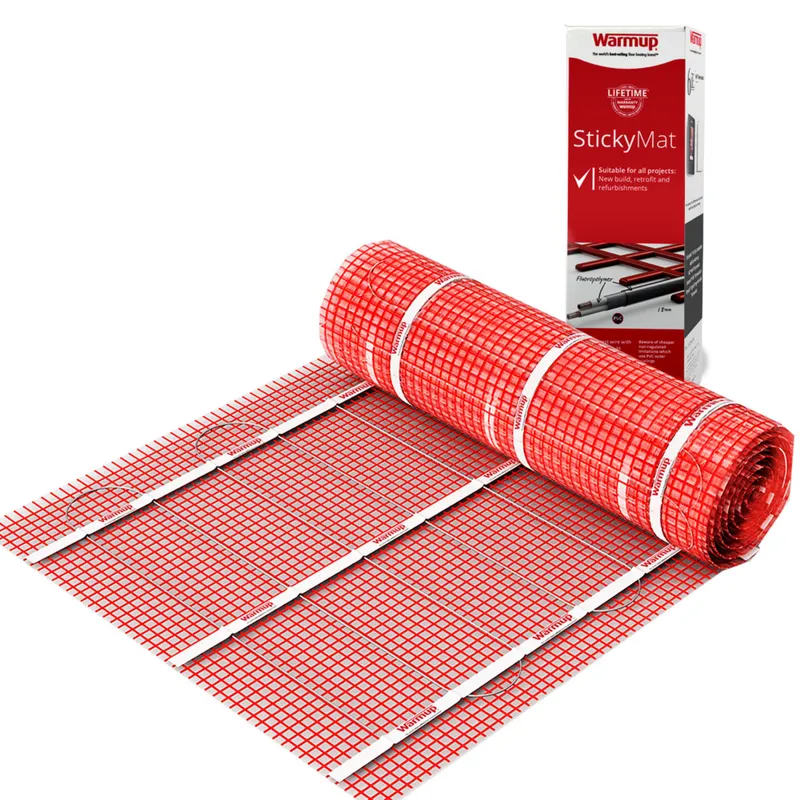

StickyMat Electric underfloor Mat heating - 150W SPM1
