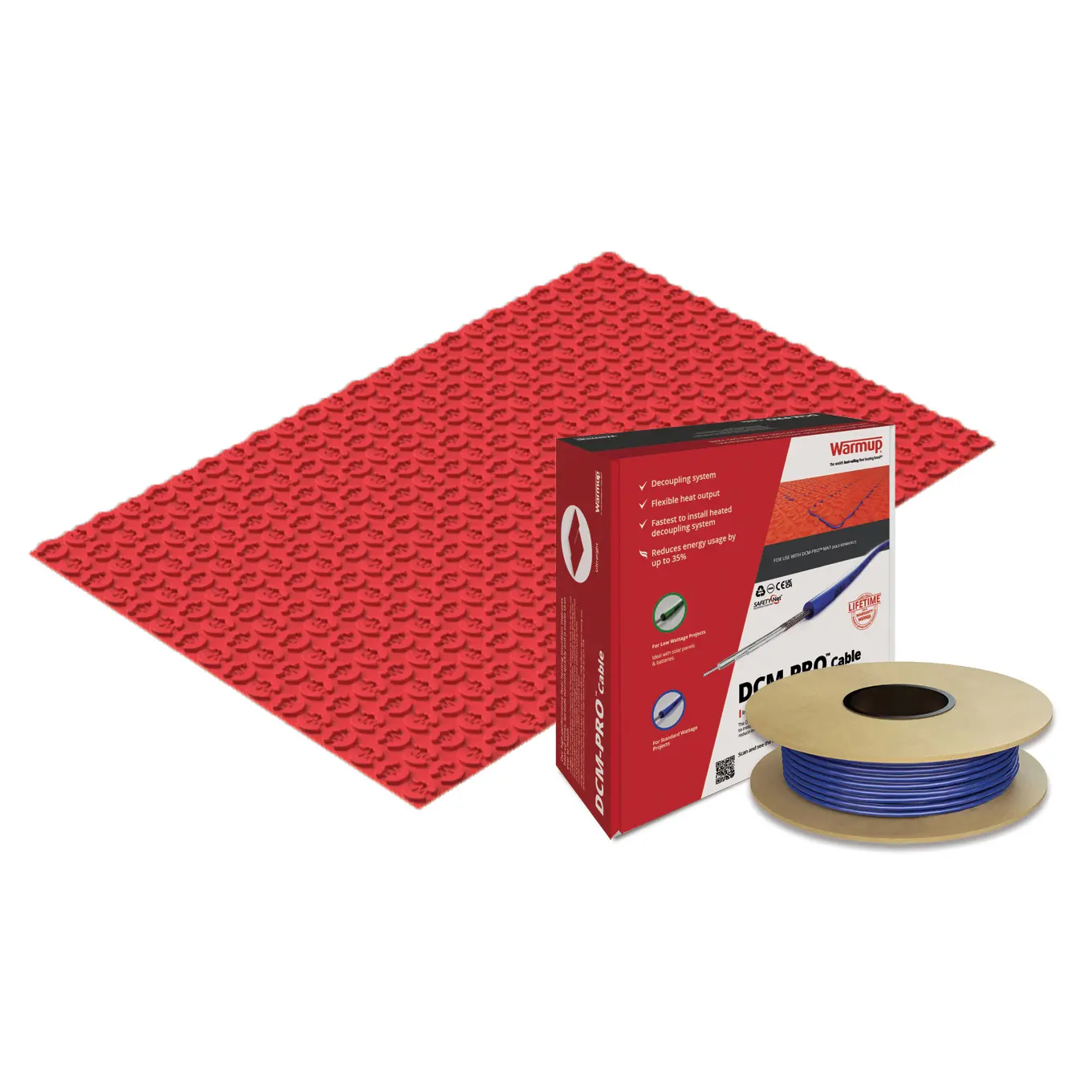

Warmup DCM-PRO Underfloor Heating Cable cover 1350W/9m² 98m Length
DCM-PRO Electric Heating Cable, 1350 Watts, 9m² 98m Length | Output 150w/m² (3 Castellations – 90mm) | Voltage 220-240V: 50Hz
£505.46 Inc. VAT
DCM-C-9
Finish
Blue
Size · 9m² 98m Length
Description
Description
At 98m long and rated at 1350W, this is Warmup's DCM-PRO underfloor heating cable in the 9m² size. It belongs to the DCM-PRO system, with output quoted as 150W/m² at 3 castellations, 90mm.
The cable has an advanced fluoropolymer (ETFE) inner insulation. It is listed at 4.5mm thick, give or take 0.2mm, and it works on a 220-240V supply at 50Hz. A 3m cold tail takes the connection back to the supply.
At 1350W in total, this electric underfloor heating cable is sized for a room where around 9m² of open floor will actually be warmed, which is usually a little less than the full room measurement.
Specification
- Coverage: 9m² of floor
- Length of cable: 98m
- Rated power: 1350W
- Heat output: 150W/m² (3 castellations, 90mm)
- Insulation (inner): advanced fluoropolymer (ETFE)
- Listed thickness: 4.5mm ±0.2mm
- Cold tail lead length: 3m
- Mains supply: 220-240V at 50Hz
- Product code: DCM-C-9
Subtract fixed fittings from the room size to get the figure to order by, and have a qualified electrician handle the wiring.
Specification 5
Specification
- Product code
- DCM-C-9
- Brand
- Warmup
- Finish
- Blue
- Range
- DCM-PRO system
- Size
- 9m² 98m Length
From the manufacturer 12
From the manufacturer
- Output
- 150w/m² (3 Castellations – 90mm)
- Barcode
- 5034526011009
- Voltage
- 220-240V: 50Hz
- IP rating
- IPX19
- Thickness
- 4.5mm (± 0.2mm)
- Connection
- 3M Long ‘Coldtail’ Connection
- Weight (g)
- 3,854
- Box Width (mm)
- 320
- Box Height (mm)
- 115
- Box Length (mm)
- 320
- Inner insulation
- Advanced Fluoropolymer (ETFE)
- Min Insulation temp
- 5°C
