Images are for illustration only. Colours and finishes can look different on screen, and fittings shown may not be included - please check the specification before ordering.
Warmup · Heating 6 variants
Cement Coated Insulation Board - 50mm x 600mm x 1250mm
Cement Coated Insulation Board - 50mm x 600mm x 1250mm
£64.40 Inc. VAT
INSBOARD50MM
Size · 50mm x 600mm x 1250mm
Description
Description

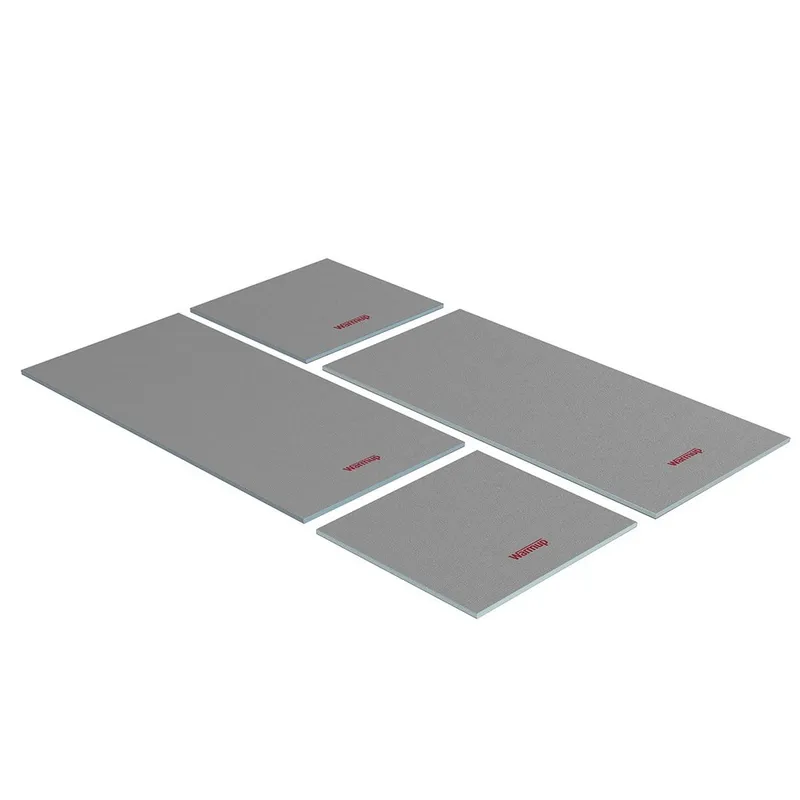

The 50mm cement-coated insulation board from Warmup, 600 x 1250mm. It is made for laying underfloor heating over a cold concrete or ground-floor slab, where much of the heat would otherwise go downwards.
Its thermal resistance is 1.33 m²K/W, about six times that of the 10mm board. The cement coating gives tile adhesive a sound surface, and the board carries 30 tonnes/m², so a tiled floor on top stays solid.
Specification
- Size: 50mm x 600mm x 1250mm
- Thermal resistance (R value): 1.33 m²K/W
- Fire rating: Euroclass E
- Load bearing: 30 tonnes/m²
- Weight: 4680g per board
- Brand: Warmup
- Barcode: 5034526005947
A 50mm board raises the floor by 50mm before tiles and adhesive, so check door thresholds and the levels of adjoining rooms first. Where height is limited, the 10mm board is the alternative.
Specification 4
Specification
- Product code
- INSBOARD50MM
- Brand
- Warmup
- Range
- Insulation Cement Boards
- Size
- 50mm x 600mm x 1250mm
From the manufacturer 8
From the manufacturer
- Barcode
- 5034526005947
- R values
- 1.33 (m²K/W)
- Box width
- 600
- Thickness
- 50mm
- Box length
- 1,250
- Fire rating
- Euroclass E
- Load bearing
- 30 tones/m²
- Product weight
- 4,680 kg
