Warmup · Heating 12 variants

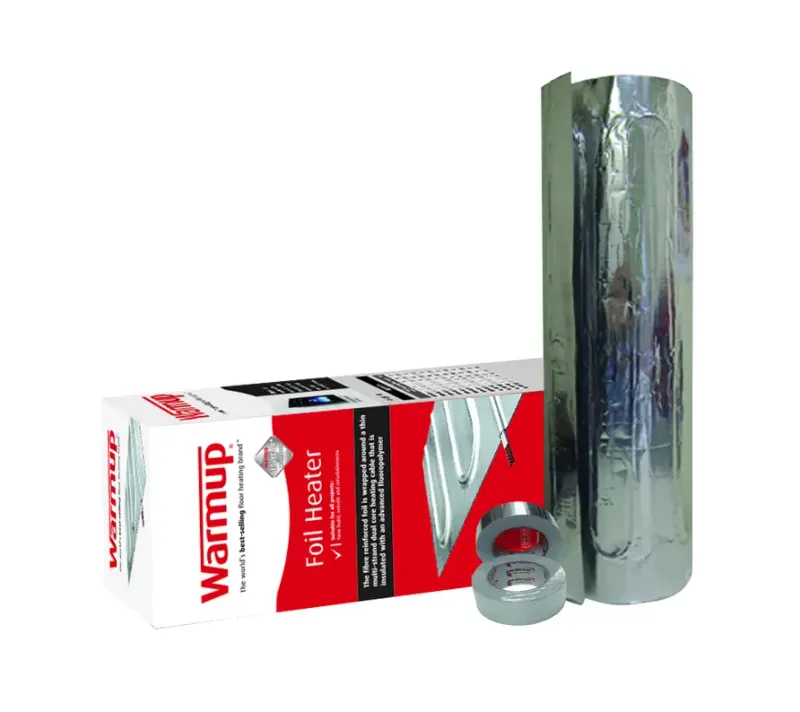

Foil Heater Electric underfloor Foil Heater Cover 140W/10m²
Foil Heating Mat 140W 10m² | Output 140 W/m² | Voltage 240 V: 50 Hz
£665.42 Inc. VAT
WLFH-140W/140010SQM
Size · 10m²
Description
Description
Ten square metres of electric underfloor heating come in this Warmup Foil Heater 10m², a foil heating mat rated at 140 W/m². Across the full area that adds up to 1400W, a load your electrician will want to know when planning the circuit.
With a maximum width of 500 mm, a mat of this coverage is laid in a series of strips across the floor. ETFE wire encased in aluminium foil does the heating, with 50mm between the wires and a 3m coil tail for the connection. Draw a plan of the room first, marking the fixed furniture and fittings where no heating should go.
Specification
- Manufacturer and product: Warmup Foil Heater
- Floor coverage: 10m²
- Heat density: 140 W/m²
- Heating element: ETFE wire encased in aluminium foil
- Maximum mat width: 500 mm
- Distance between wires: 50mm
- Tail: 3m coil tail
- Warmup reference: 1504
- SKU: WLFH-140W/140010SQM
This mat must be connected by a qualified electrician, who should also confirm the circuit can carry its 1400W load.
Specification 4
Specification
- Product code
- WLFH-140W/140010SQM
- Brand
- Warmup
- Range
- Foil Heater
- Size
- 10m²
Delivery and returns
Delivery and returns
Free UK delivery on this item. Ordered from the maker when you pay.
Unfitted items can be returned within 28 days in the original packaging. Start a return with your order number and the address you ordered with — no account needed.
From the manufacturer 13
From the manufacturer
- Output
- 140 W/m²
- Voltage
- 240 V: 50 Hz
- Bar code
- 5034526001192
- Box width
- 180
- Max width
- 500 mm
- Warmup ID
- 1504
- Box height
- 180
- Box length
- 530
- Mat length
- 2 m to 24
- Construction
- ETFE wire encased in aluminium foil
- Product weight
- 4,900 kg
- Coil tail length
- 3m
- Heating cable spacing
- 50mm
Documents 9
Documents
- DatasheetWarmup-Tech-Sheet-E02-Foil-Heater-V1.1-0916PDF
- DocumentWarmup IM Insulated-Underlay Dual-Overlay-2014-03-27PDF
- DocumentWarmup-IM-Foil TMP ENPDF
- DocumentWarmup-TS-HiDECK-Overlay-18PDF
- Technical drawingFoil Heater Technical Drawing Engineered WoodPDF
- Price guideuk pricelistPDF
- DocumentFoil CarpetPDF
- Technical drawingFoil Heater Technical Drawing Engineered Wood with ChipboardPDF
- Technical drawingFoil Heater Technical Drawing VinylPDF
