Warmup · Heating 12 variants
Foil Heater Electric underfloor Foil Heater Cover 140W/1m²
Foil Heating Mat 140W 1m² | Output 140 W/m² | Voltage 230 V: 50 Hz
£98.96 Inc. VAT
WLFH-140W/1401SQM
Size · 1m²
Description
Description

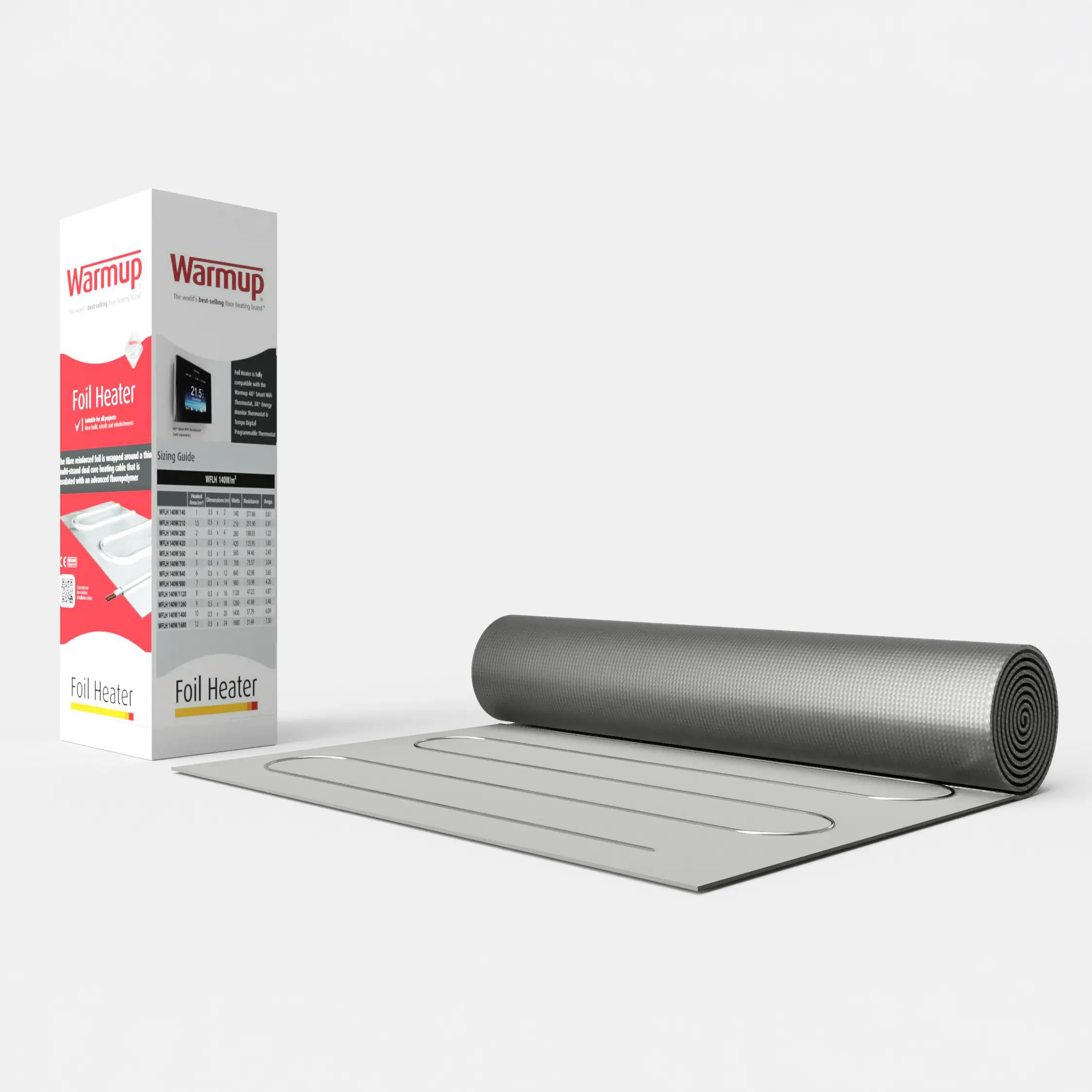

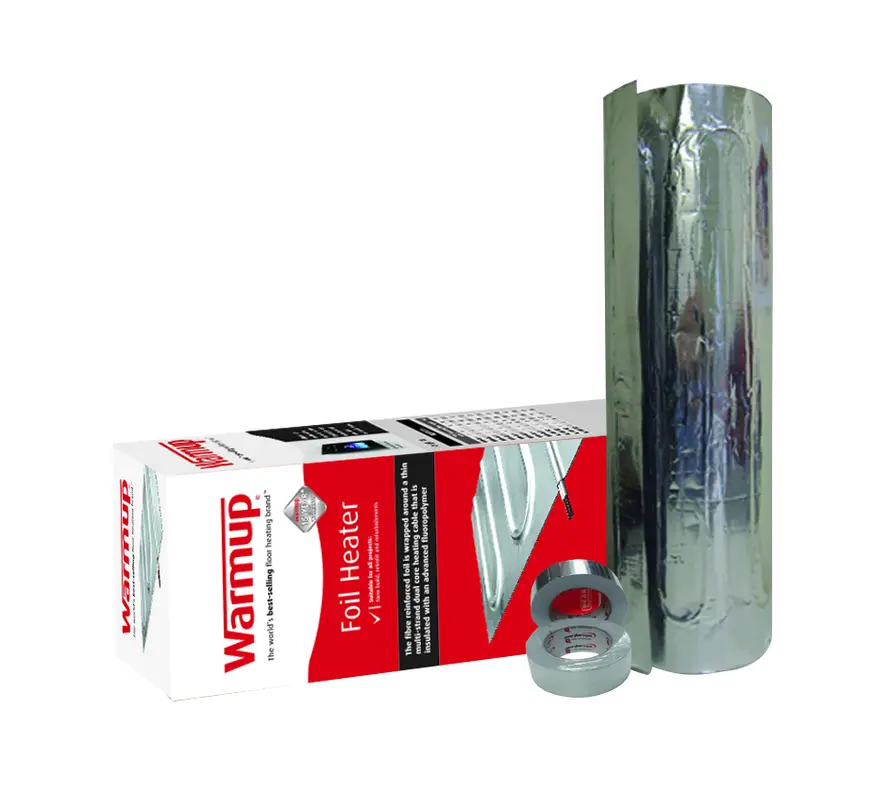

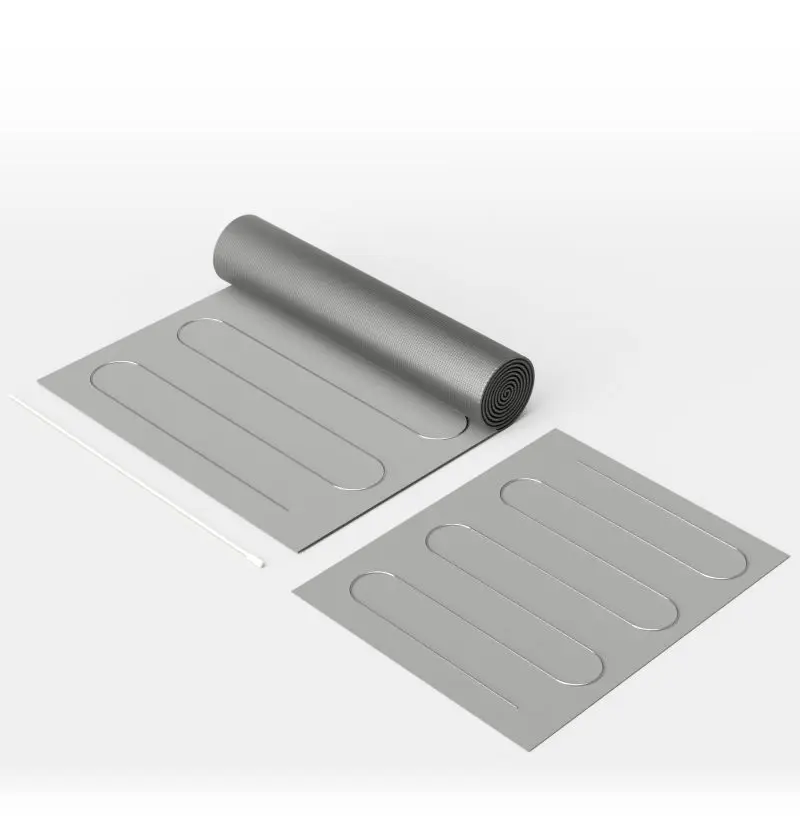

Warmup Foil Heater Electric Underfloor Foil Heater Cover 140W/1m²
The Warmup Foil Heater is a highly efficient electric underfloor heating solution designed for areas up to 1m².
Suitable For:

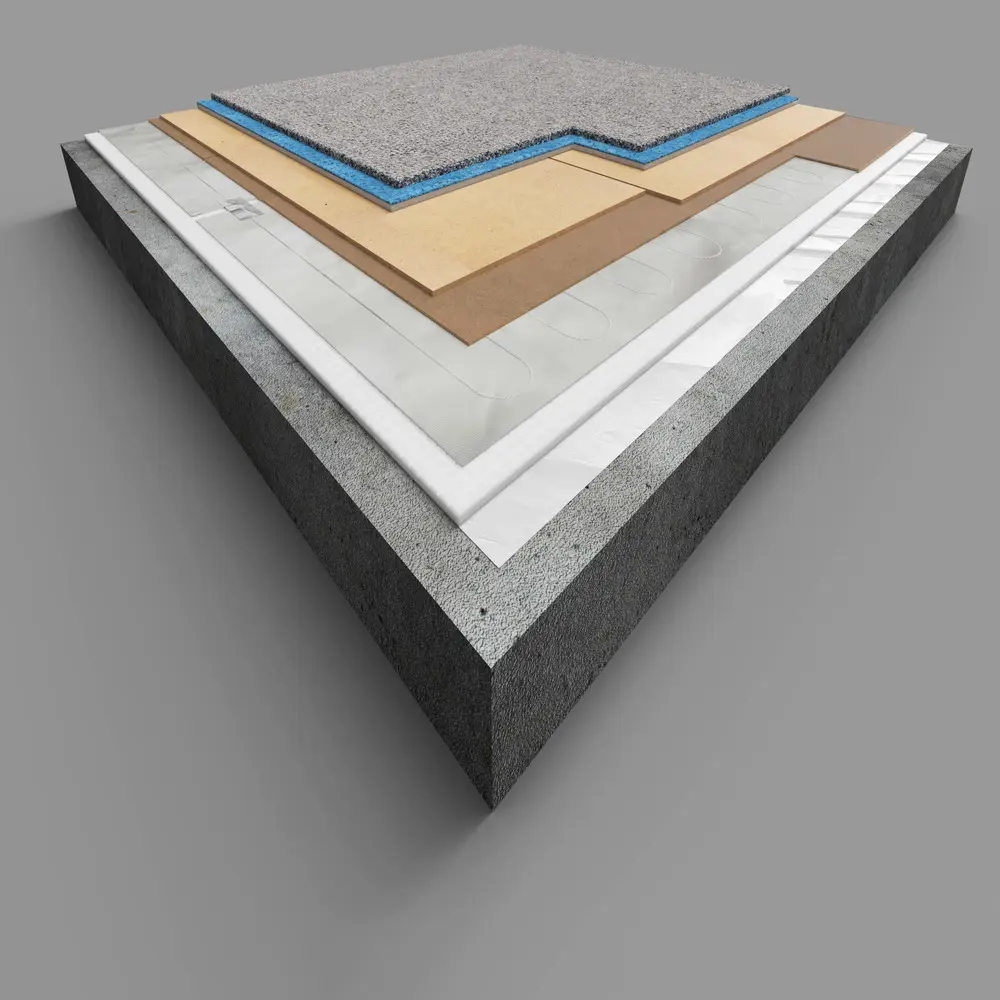

- Carpet flooring

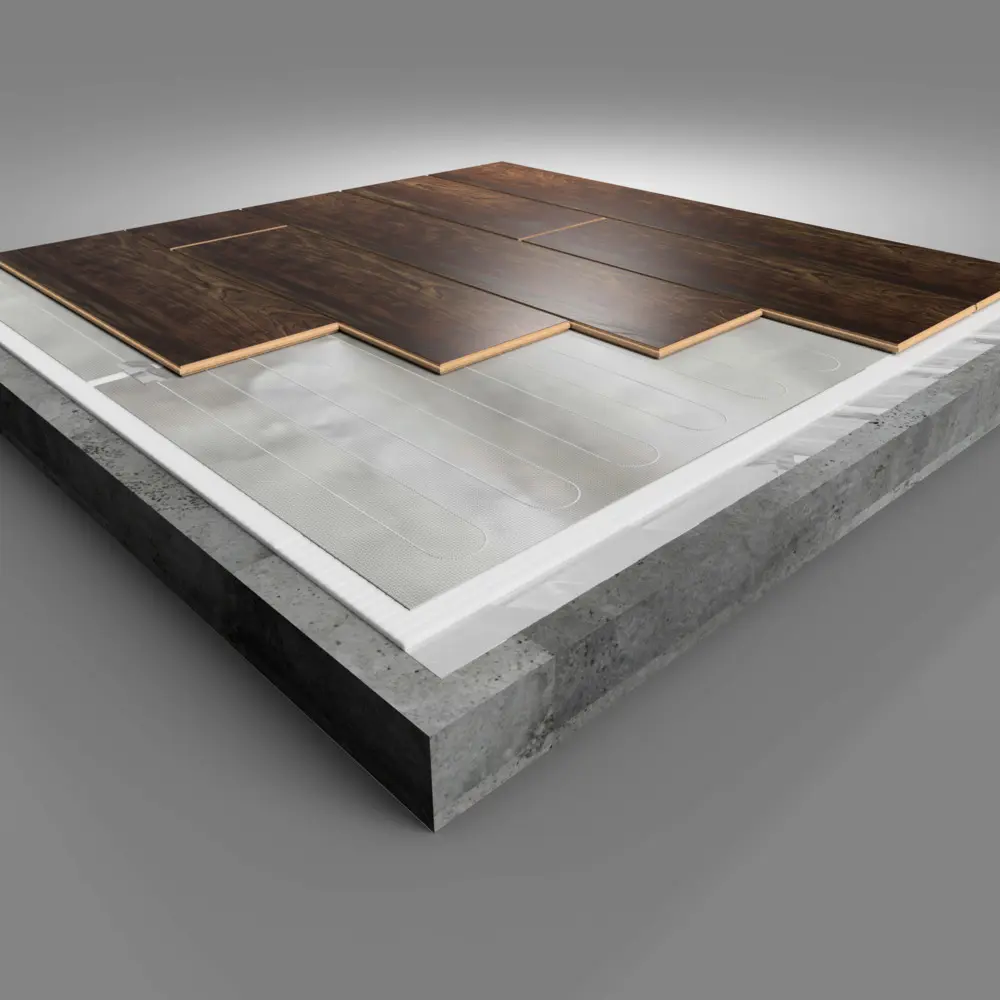

- Engineered wood floors
- Vinyl flooring
Key Features:
- Output Rating: 140 W/m²
- Area Coverage: 1m²
- Heating Cable Spacing: 50mm
- Max Width: 500 mm
- Operating Voltage: 230 V, 50 Hz

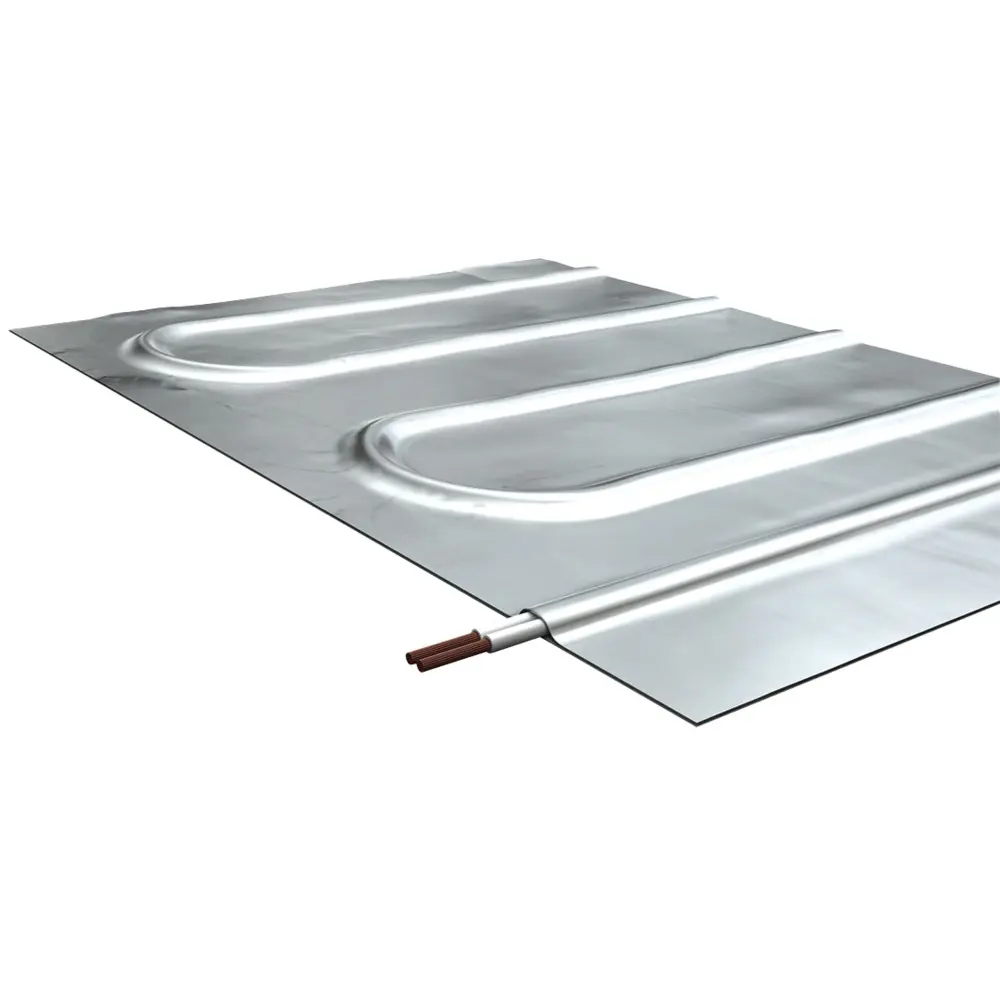

- Construction: ETFE wire with aluminum foil
Enhance your home’s comfort with efficient warmth without complex installations.
Documents 9
Documents
- DatasheetWarmup-Tech-Sheet-E02-Foil-Heater-V1.1-0916PDF
- DocumentWarmup IM Insulated-Underlay Dual-Overlay-2014-03-27PDF
- DocumentWarmup-IM-Foil TMP ENPDF
- DocumentWarmup-TS-HiDECK-Overlay-18PDF
- Technical drawingFoil Heater Technical Drawing Engineered WoodPDF
- Price guideuk pricelistPDF
- DocumentFoil CarpetPDF
- Technical drawingFoil Heater Technical Drawing Engineered Wood with ChipboardPDF
- Technical drawingFoil Heater Technical Drawing VinylPDF
Specification 5
Specification
- Product code
- WLFH-140W/1401SQM
- Brand
- Warmup
- Range
- Foil Heater
- Size
- 1m²
- Delivery size
- Small parcel (Up to 2 kg)
From the manufacturer 15
From the manufacturer
- Output
- 140 W/m²
- Weight
- 750
- Voltage
- 230 V: 50 Hz
- Approved
- BEAB & European compliant and CE marked
- Bar code
- 5034526001390
- Box width
- 180
- Guarantee
- Life Time Limited & SafetyNet™ Installation Guarantee
- Max width
- 500 mm
- Warmup ID
- 1712
- Box height
- 180
- Box length
- 530
- Mat length
- 2 m to 24
- Construction
- ETFE wire encased in aluminium foil
- Coil tail length
- 3m
- Heating cable spacing
- 50mm
