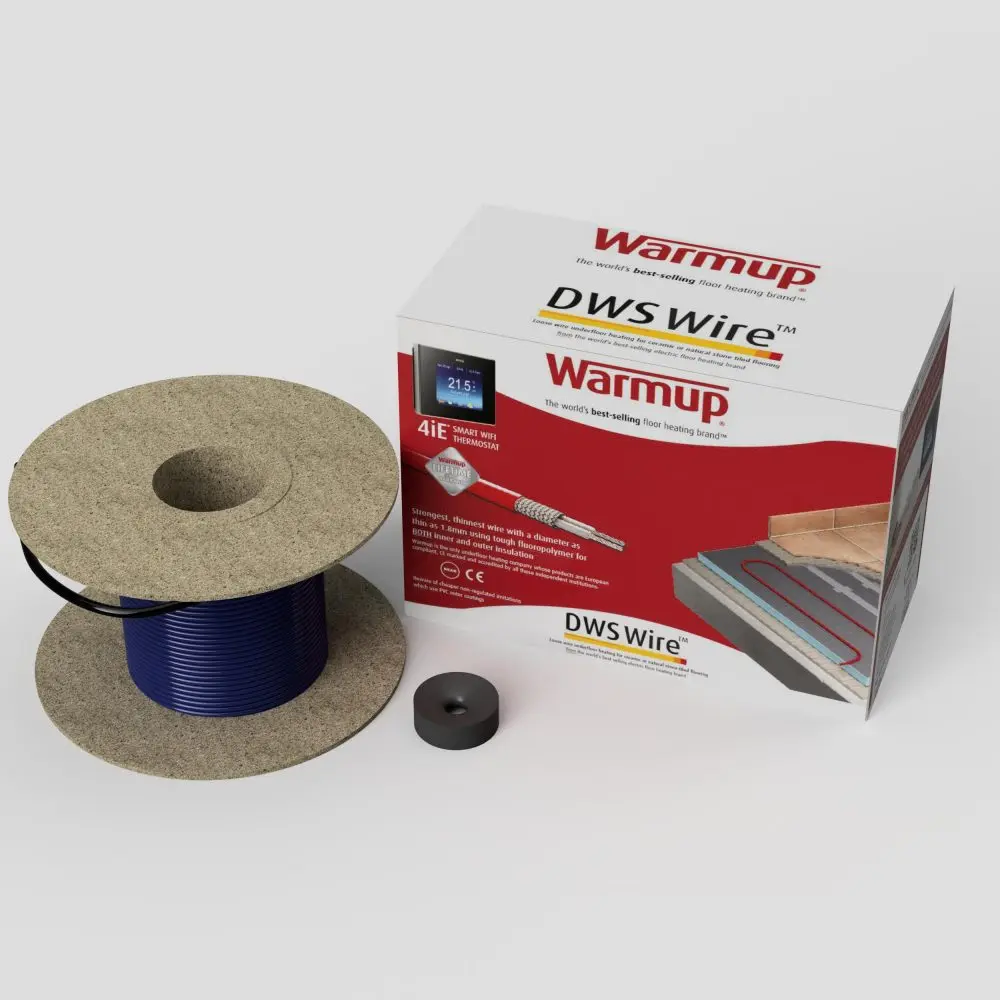

Loose Wire Electric underfloor heating Cover 14.5 to 15.9m²

Large tiled floors, such as a kitchen-diner or a garden room, are what this Warmup loose wire underfloor heating for 14.5 to 15.9m² is sized for. It is supplied as two DWS800 under tile heaters and one DWS600, laid as loose cable that follows the outline of the room.

Over a concrete slab, a good share of the heat can go down into the floor instead of up into the room. Insulation boards laid before the heater are a common way to reduce that loss and help the floor warm up faster, so ask your installer whether your floor needs them.

The cable is 1.8 mm thick, insulated with advanced fluoropolymer (ETFE), and Warmup gives an average output rating of 150 W/m². It runs on a 230V supply.

Specification

• Heaters supplied: 2 x DWS800, 1 x DWS600
• Heated area: 14.5 to 15.9m²
• Output (average): 150 W/m²
• Thickness of cable: 1.8 mm
• Insulation: advanced fluoropolymer (ETFE), inside and out
• Length of cold tail: 3m
• Mains supply: 230V: 50Hz

Measure the open floor rather than the whole room, and book a qualified electrician to wire the heaters in through a suitable thermostat.
