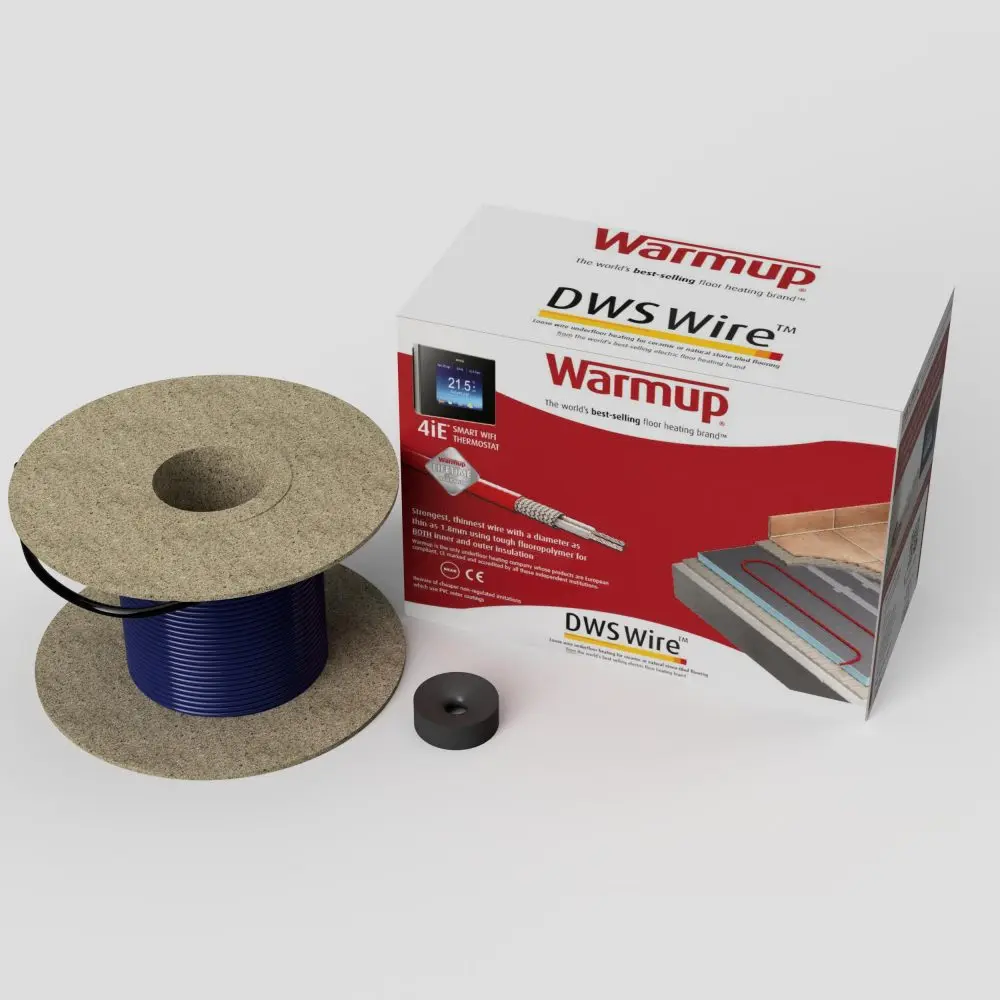

Loose Wire Electric underfloor heating Cover 22.0 to 25.4m²

Rated for 22.0 to 25.4m², this Warmup loose wire underfloor heating kit is intended for a big open-plan floor finished in tiles, where cooking, dining and seating share one space.

The coverage band is wide, at 3.4m² from bottom to top. Loose wire is laid at a spacing set on site, so the same cable can be spread over a floor anywhere within that band.

Five DWS800 under tile heaters make up the kit. Every one uses 1.8 mm cable with an advanced fluoropolymer (ETFE) sheath, and the stated average output is 150 W/m². With five heaters on one floor, the electrician will want to plan how they are connected and controlled before any cable goes down, and this electric underfloor heating needs a 230V: 50Hz supply.

Specification

• Number of heaters: 5 x DWS800 (under tile)
• Coverage range: 22.0 to 25.4m²
• Heat output (average): 150 W/m²
• Cable thickness, each heater: 1.8 mm
• ETFE insulation: advanced fluoropolymer, inside and outside
• Cold lead: 3m
• Supply needed: 230V: 50Hz

Measure the open floor carefully, check it sits within 22.0 to 25.4m², and talk to a qualified electrician about the circuit before ordering.
