Loose Wire Electric underfloor heating Cover 19.0 to 20.4m²

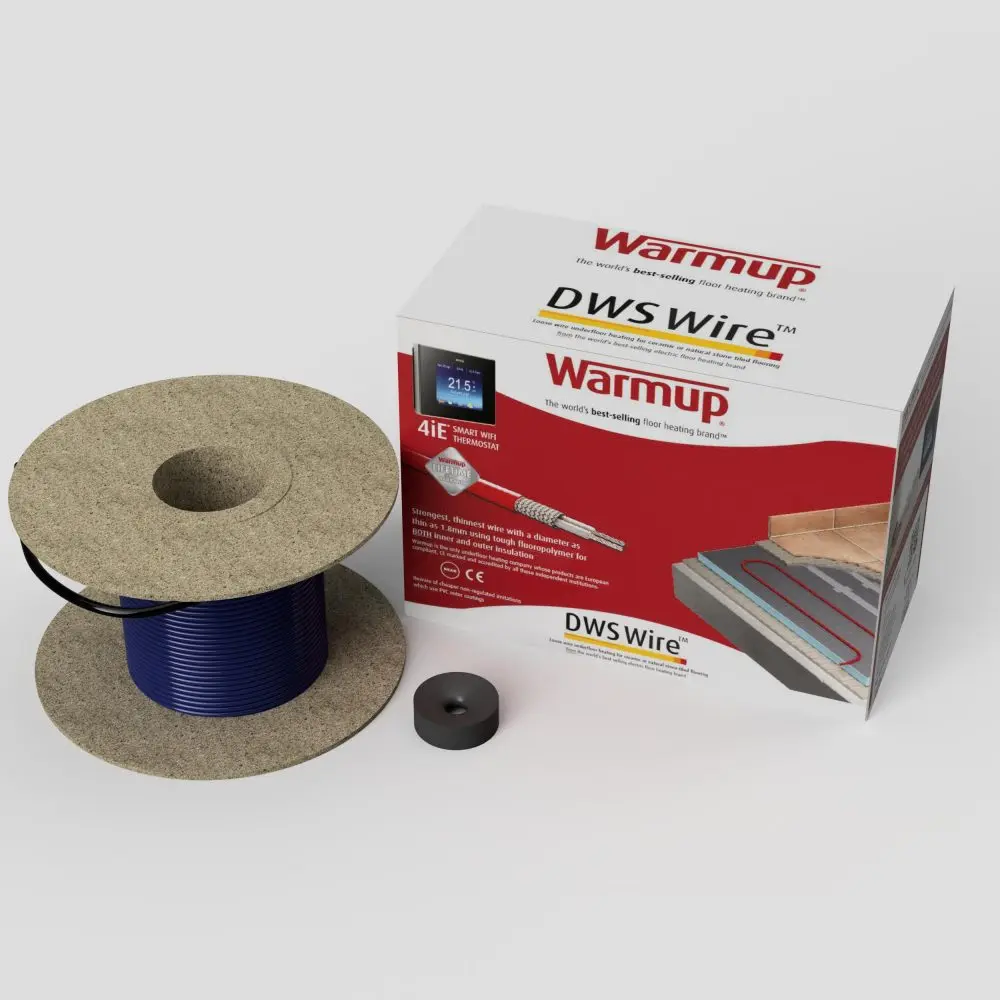

Made up of three DWS800 heaters and one DWS400, this Warmup loose wire underfloor heating covers 19.0 to 20.4m² of floor laid with tiles. It is aimed at a big room where the heat is to come from under a tiled finish rather than from radiators on the walls.

Decide early where the thermostat will go. The cold tail is the unheated lead linking the heating cable to the electrical connection, and here it is 3m long. The heated area has to start within that reach, so the thermostat position shapes where the cable begins.

The cable measures 1.8 mm, with advanced fluoropolymer (ETFE) as its inner and outer insulation. Average output is rated at 150 W/m², and the under tile heater works from a 230V: 50Hz supply.

Specification

• Kit: 3 x DWS800 + DWS400 under tile heater
• Covers: 19.0 to 20.4m²
• Average heat output rating: 150 W/m²
• Heating wire: 1.8 mm
• Inner and outer cable covering: advanced fluoropolymer (ETFE)
• Cold tail provided: 3m
• Supply voltage and frequency: 230V at 50Hz

Mark the thermostat position and the free floor area on a plan before ordering, and remember that a qualified electrician has to carry out the wiring.
