Warmup · Heating 15 variants
Inscreed Cable Electric underfloor heating cover 10.4 - 20.7m2
£349.26 Inc. VAT
WIS2070
Or 3 payments of £116.42,
interest-free. Subject to status.
Size · 10.4 - 20.7m²
Optional extras
Not requiredNothing here is needed to buy this. Tick anything you would like and it goes in your basket with it, one of each.
Description
Description

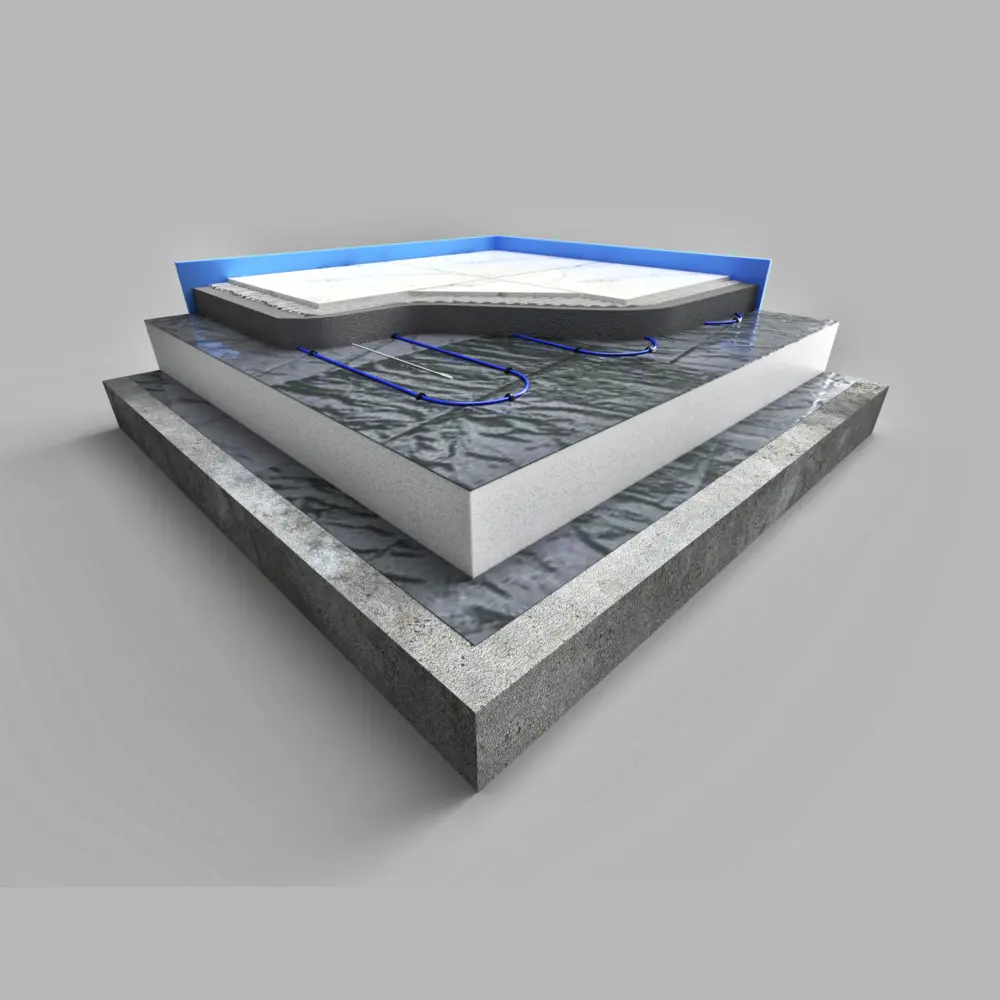

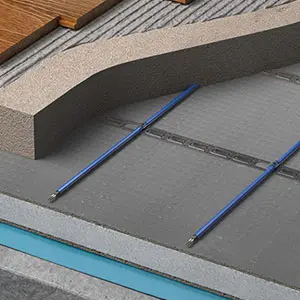

A rear extension or an open-plan kitchen-diner with a new screed could take this Warmup inscreed electric underfloor heating kit, which covers 10.4 to 20.7m². It holds 103.5m of 6mm cable rated at 2070W, part of Warmup's Inscreed cable system.
At 2070W, it is a sizeable electrical load. Bring your electrician in before the screed is poured, because the supply for a heating cable of this power has to be planned rather than added at the end. The output works out at 100 to 210W/m², depending on how much floor the cable is spread across, and the 2.5m cold tail carries the connection back to the supply.
Specification
- Description: In-Screed Cable 103.5m 2070W
- Coverage: 10.4 - 20.7m²
- Rating: 100 to 210W/m²

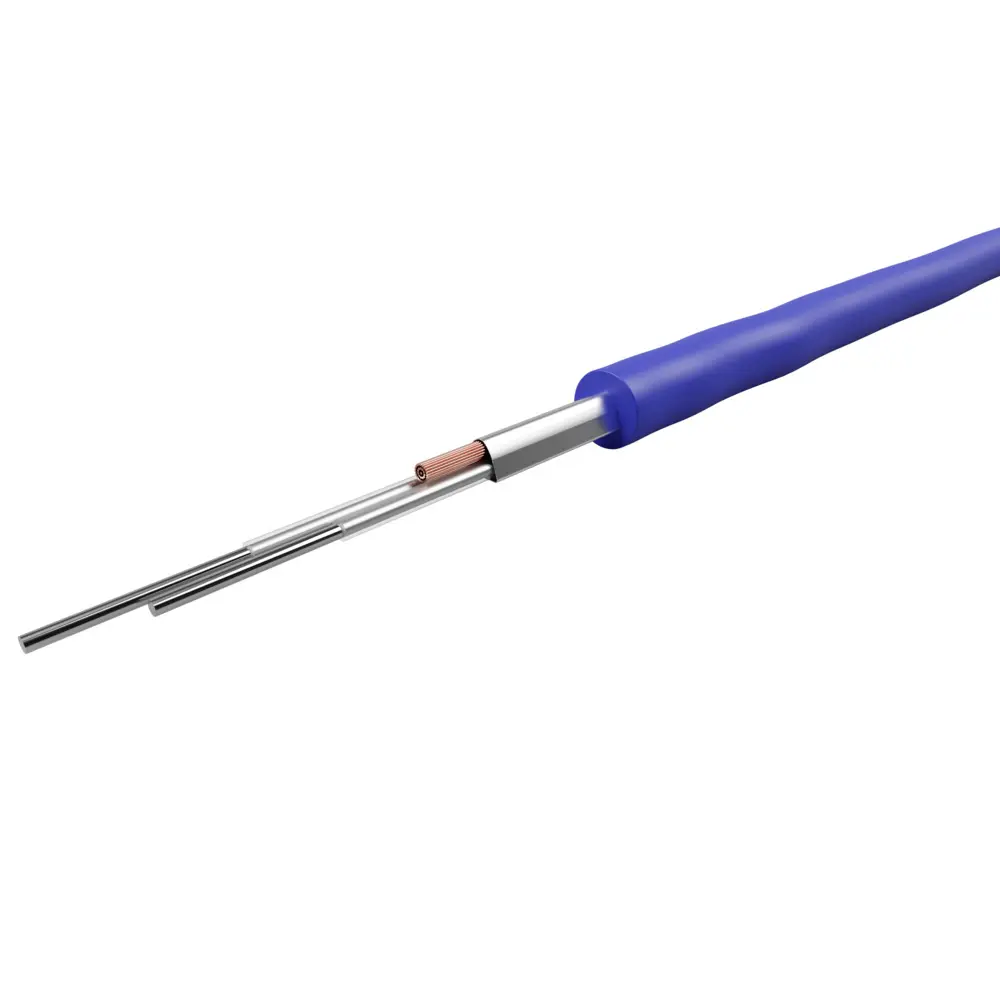

- Cable: 6mm diameter
- Unheated cold tail: 2.5m
- Runs on 230V, 50Hz
- Approved: BEAB, CE marked, European compliant
- SKU: WIS2070
Confirm the heated floor area, excluding kitchen units and islands, before ordering.
Specification 5
Specification
- Product code
- WIS2070
- Brand
- Warmup
- Range
- Inscreed cable system
- Size
- 10.4 - 20.7m²
- Delivery size
- Small parcel (Up to 2 kg)
Documents 4
Documents
Delivery and returns
Delivery and returns
Delivery is charged by weight band, one rate UK-wide, and is free over £500. Ordered from the maker when you pay.
Unfitted items can be returned within 28 days in the original packaging. Start a return with your order number and the address you ordered with — no account needed.
From the manufacturer 15
From the manufacturer
- Approved
- BEAB & European compliant and CE marked
- Bar code
- 5034526004810
- Guarantee
- Life Time Limited & SafetyNet™ Installation Guarantee
- Warmup id
- 1859
- Weight (g)
- 4,970
- Area coverage
- 10.4 - 20.7m2
- Output rating
- 100 to 210W/m²
- Cable diameter
- 6mm
- Dimension unit
- mm
- Box width (mm)
- 470
- Box height (mm)
- 58
- Box length (mm)
- 470
- Cold tail length
- 2.5 m
- Operating voltage
- 230V: 50Hz
- Short description
- In-Screed Cable 103.5m 2070W
