Images are for illustration only. Colours and finishes can look different on screen, and fittings shown may not be included - please check the specification before ordering.
Warmup · Heating 15 variants
Inscreed Cable Electric underfloor heating cover 2.5 - 5m2
£138.24 Inc. VAT
WIS500
Size · 2.5 - 5m²
Optional extras
Not requiredNothing here is needed to buy this. Tick anything you would like and it goes in your basket with it, one of each.
Description
Description

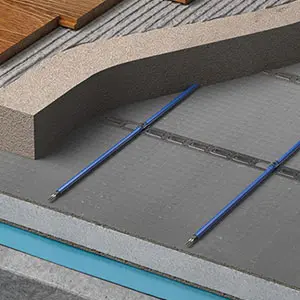

Small rooms being screeded from scratch are where this Warmup inscreed cable electric underfloor heating kit fits, covering 2.5 to 5m² with 25m of cable at 500W. As part of the Inscreed cable system, the cable is embedded in the screed itself, so the decision has to be made before the screed is poured.
How much floor the underfloor heating can cover depends on how you space the cable. The same 25m length stretches from 2.5m² up to 5m², within an output rating of 100 to 210W/m². Power arrives through a 2.5 m cold tail on a 230V: 50Hz supply, and the kit is BEAB approved, European compliant and CE marked.
Specification
- Kit: In-Screed Cable 25m 500W
- Floor area covered: 2.5 - 5m²
- Rated output: 100 to 210W/m²

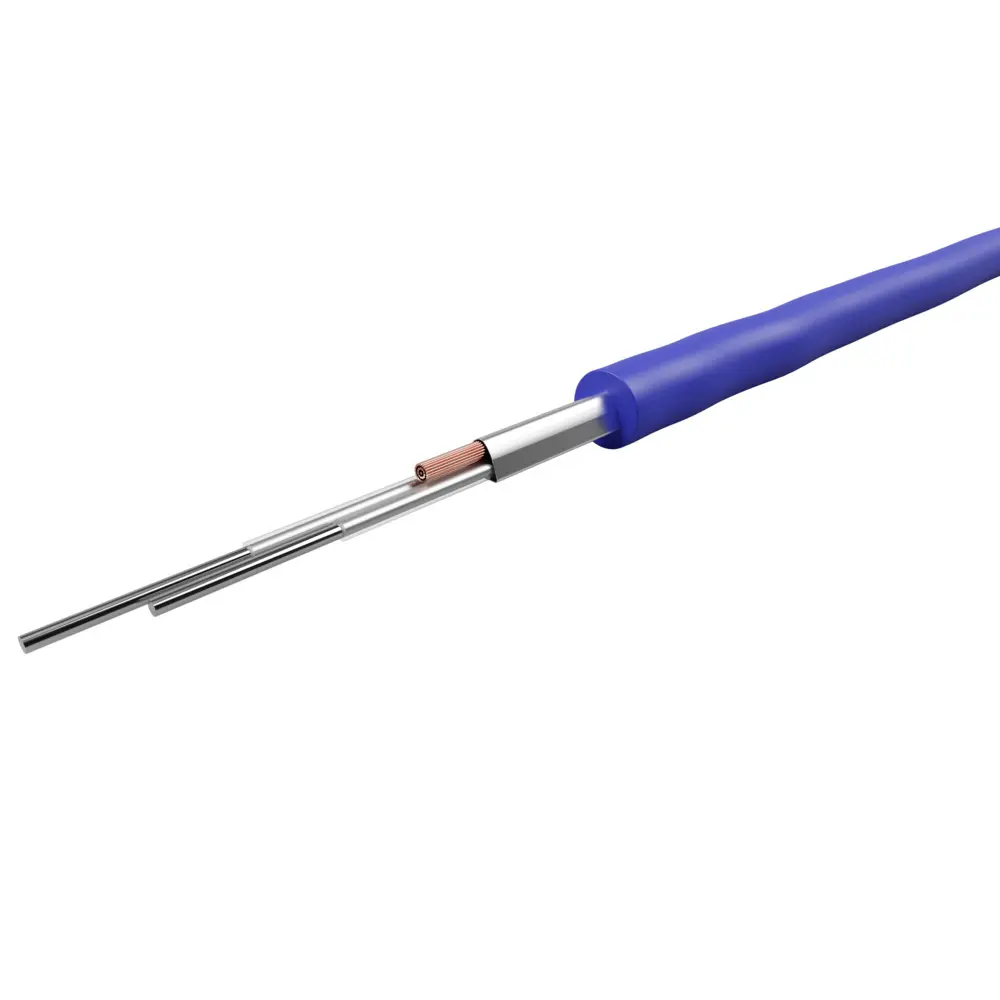

- Diameter of the cable: 6mm
- Unheated lead (cold tail): 2.5 m
- Voltage and frequency: 230V: 50Hz
- Approvals held: BEAB & European compliant, CE marked
- Warmup product code: WIS500
Plan the cable layout with whoever is laying the screed, and leave the final connection to a qualified electrician.
Specification 4
Specification
- Product code
- WIS500
- Brand
- Warmup
- Range
- Inscreed cable system
- Size
- 2.5 - 5m²
Documents 4
Documents
Delivery and returns
Delivery and returns
Delivery is charged by weight band, one rate UK-wide, and is free over £500. Ordered from the maker when you pay.
Unfitted items can be returned within 28 days in the original packaging. Start a return with your order number and the address you ordered with — no account needed.
From the manufacturer 15
From the manufacturer
- Approved
- BEAB & European compliant and CE marked
- Bar code
- 5034526004735
- Guarantee
- Life Time Limited & SafetyNet™ Installation Guarantee
- Warmup ID
- 1851
- Weight (g)
- 1,670
- Area coverage
- 2.5 - 5m2
- Output rating
- 100 to 210W/m²
- Box Width (mm)
- 390
- Cable diameter
- 6mm
- Dimension unit
- mm
- Box Height (mm)
- 48
- Box Length (mm)
- 400
- Cold tail length
- 2.5 m
- Operating voltage
- 230V: 50Hz
- Short description
- In-Screed Cable 25m 500W
