Warmup · Heating 15 variants
Inscreed Cable Electric underfloor heating cover 15.7- 31.4m2
£489.94 Inc. VAT
WIS3140
Or 3 payments of £163.32,
interest-free. Subject to status.
Size · 15.7- 31.4m²
Optional extras
Not requiredNothing here is needed to buy this. Tick anything you would like and it goes in your basket with it, one of each.
Description
Description

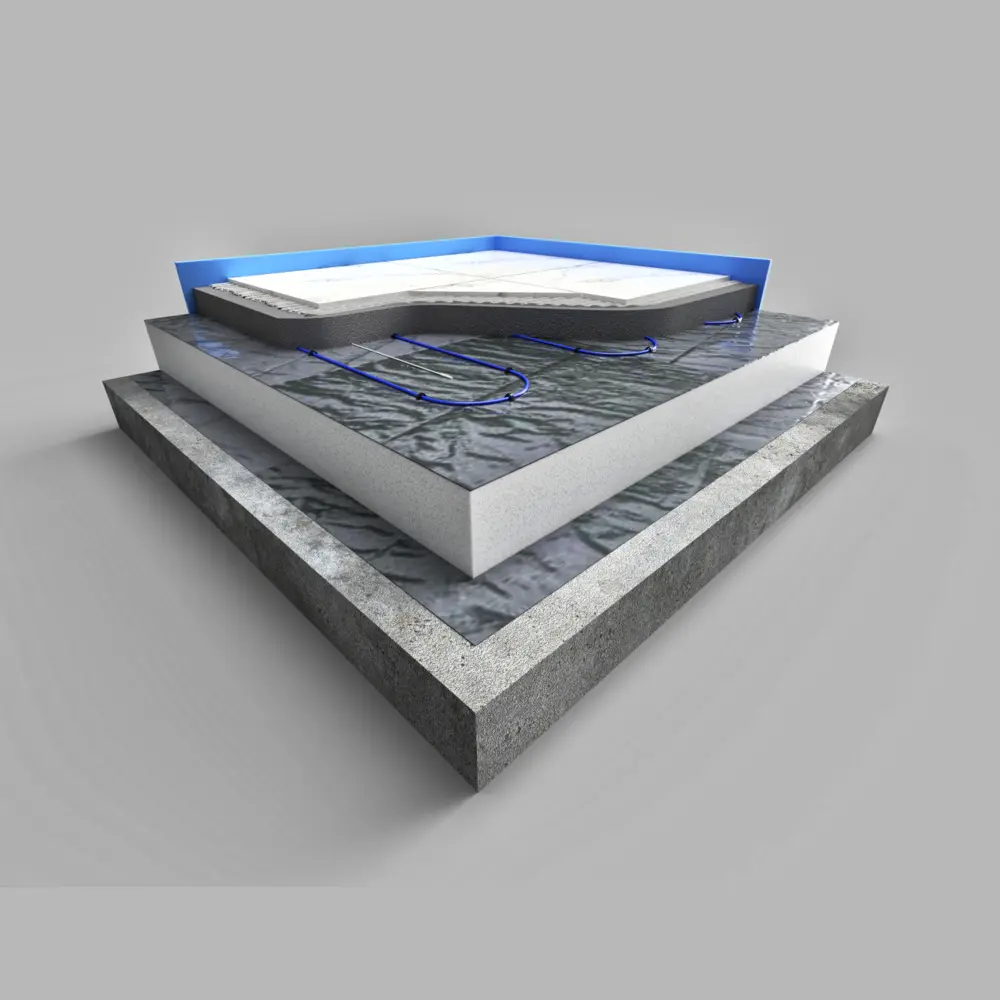

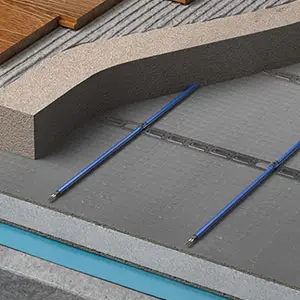

For a large floor going down on a new screed, this Warmup inscreed heating kit covers 15.7 to 31.4m² with 157m of cable. It is rated at 3140W and comes from Warmup's Inscreed cable system, where the 6mm cable is set into the screed itself.
How much of that range you use depends on how far apart the runs are spaced. Tighter spacing puts more heat into each square metre, while wider spacing stretches the cable over more floor. The stated output rating is 100 to 210W/m², and power reaches the cable through a 2.5 m cold tail on 230V: 50Hz.
Specification
- Short description: In-Screed Cable 157m 3140W
- Area coverage: 15.7 - 31.4m²
- Output rating: 100 to 210W/m²

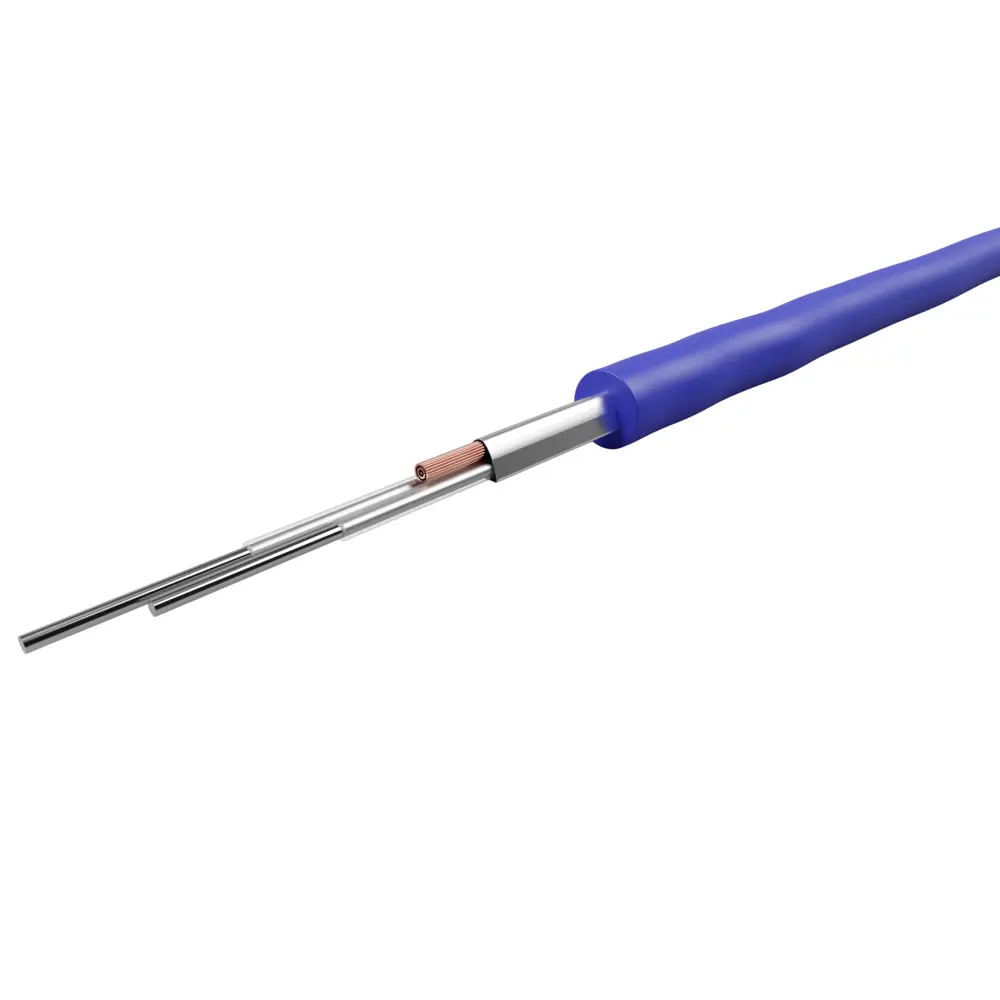

- Cable diameter: 6mm
- Cold tail length: 2.5 m
- Operating voltage: 230V: 50Hz
- Approved: BEAB & European compliant and CE marked
- SKU: WIS3140
As with any electric underfloor heating, measure the floor carefully first and arrange for a qualified electrician to wire it in.
Specification 5
Specification
- Product code
- WIS3140
- Brand
- Warmup
- Range
- Inscreed cable system
- Size
- 15.7- 31.4m²
- Delivery size
- Small parcel (Up to 2 kg)
Documents 4
Documents
Delivery and returns
Delivery and returns
Delivery is charged by weight band, one rate UK-wide, and is free over £500. Ordered from the maker when you pay.
Unfitted items can be returned within 28 days in the original packaging. Start a return with your order number and the address you ordered with — no account needed.
From the manufacturer 15
From the manufacturer
- Approved
- BEAB & European compliant and CE marked
- Bar code
- 5034526004834
- Guarantee
- Life Time Limited & SafetyNet™ Installation Guarantee
- Warmup id
- 1861
- Weight (g)
- 7,420
- Area coverage
- 15.7- 31.4m2
- Output rating
- 100 to 210W/m²
- Cable diameter
- 6mm
- Dimension unit
- mm
- Box width (mm)
- 470
- Box height (mm)
- 58
- Box length (mm)
- 470
- Cold tail length
- 2.5 m
- Operating voltage
- 230V: 50Hz
- Short description
- In-Screed Cable 157m 3140W
