Inscreed Cable Electric underfloor heating cover 8.9 - 17.7m2
£322.57 Inc. VAT
WIS1770
Size · 8.9 - 17.7m²
Optional extras
Not requiredNothing here is needed to buy this. Tick anything you would like and it goes in your basket with it, one of each.
Description
Description

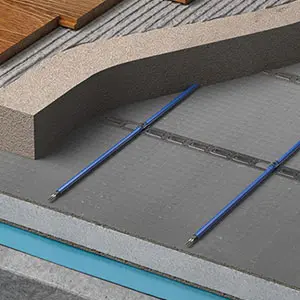

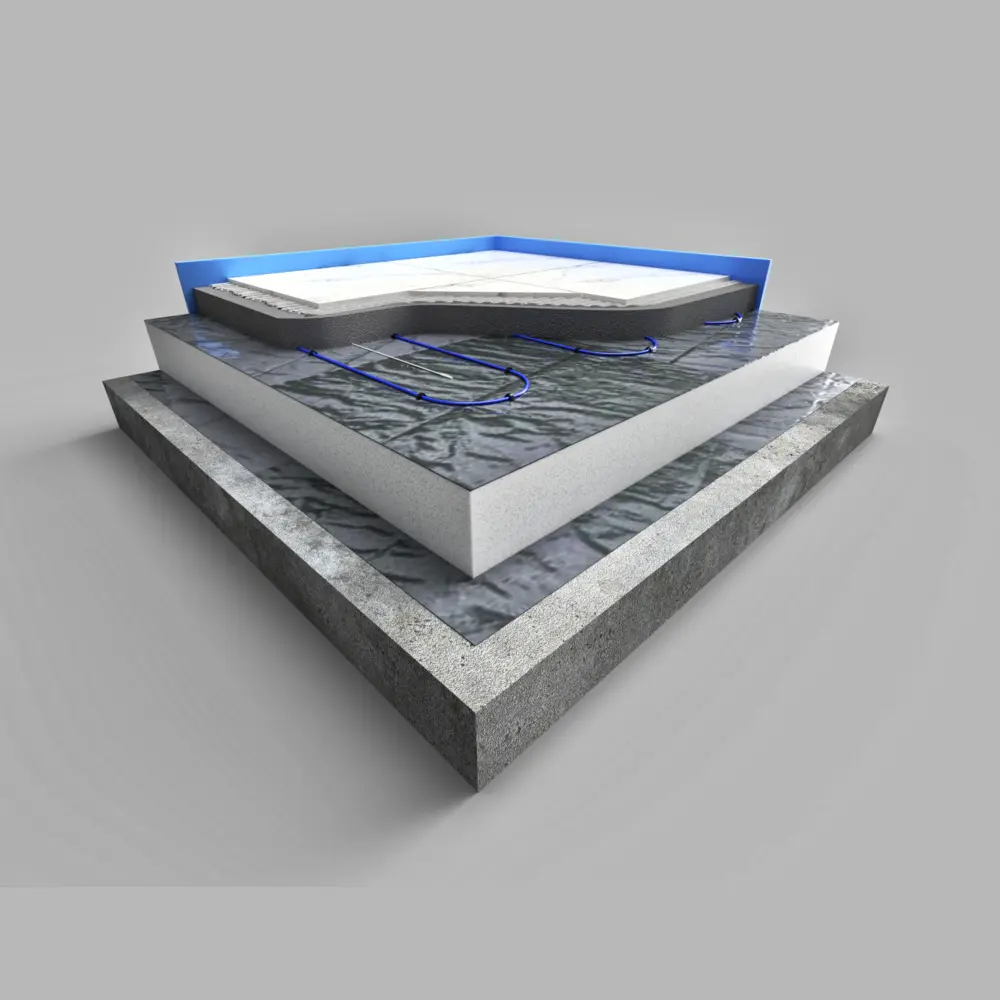

The Warmup inscreed cable for 8.9 - 17.7m² is an 88.5m heating cable rated at 1770W. It is laid within a screed, so it needs planning in while the floor is being built up rather than added afterwards.
Pick this length when the area you want heated falls between 8.9 and 17.7m². Within that band, output per square metre will sit somewhere in the 100 to 210W/m² rating, depending on the spacing.
Specification
- Short description: In-Screed Cable 88.5m 1770W
- Area coverage: 8.9 - 17.7m²
- Output rating: 100 to 210W/m²

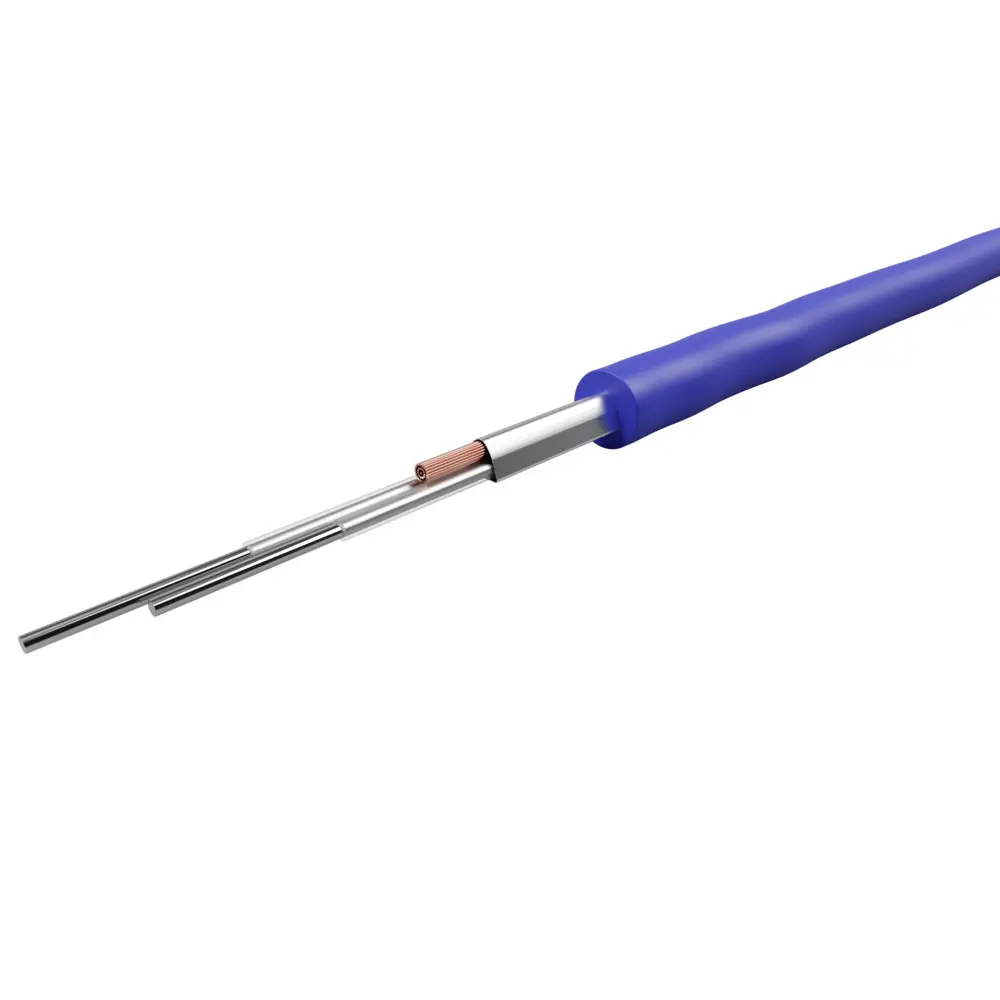

- Cable diameter: 6mm
- Cold tail length: 2.5 m
- Operating voltage: 230V: 50Hz
- Approved: BEAB & European compliant and CE marked
- SKU: WIS1770
Measure the free floor area before choosing, and use a qualified electrician for the final connection.
Specification 4
Specification
- Product code
- WIS1770
- Brand
- Warmup
- Range
- Inscreed cable system
- Size
- 8.9 - 17.7m²
Documents 4
Documents
Delivery and returns
Delivery and returns
Delivery is charged by weight band, one rate UK-wide, and is free over £500. Ordered from the maker when you pay.
Unfitted items can be returned within 28 days in the original packaging. Start a return with your order number and the address you ordered with — no account needed.
From the manufacturer 15
From the manufacturer
- Approved
- BEAB & European compliant and CE marked
- Bar code
- 5034526004803
- Guarantee
- Life Time Limited & SafetyNet™ Installation Guarantee
- Warmup ID
- 1858
- Weight (g)
- 4,290
- Area coverage
- 8.9 - 17.7m2
- Output rating
- 100 to 210W/m²
- Box Width (mm)
- 470
- Cable diameter
- 6mm
- Dimension unit
- mm
- Box Height (mm)
- 58
- Box Length (mm)
- 470
- Cold tail length
- 2.5 m
- Operating voltage
- 230V: 50Hz
- Short description
- In-Screed Cable 88.5m 1770W
