Warmup · Heating 15 variants
Inscreed Cable Electric underfloor heating cover 3.8 - 7.6m2
£174.62 Inc. VAT
WIS760
Size · 3.8 - 7.6m²
Optional extras
Not requiredNothing here is needed to buy this. Tick anything you would like and it goes in your basket with it, one of each.
Description
Description

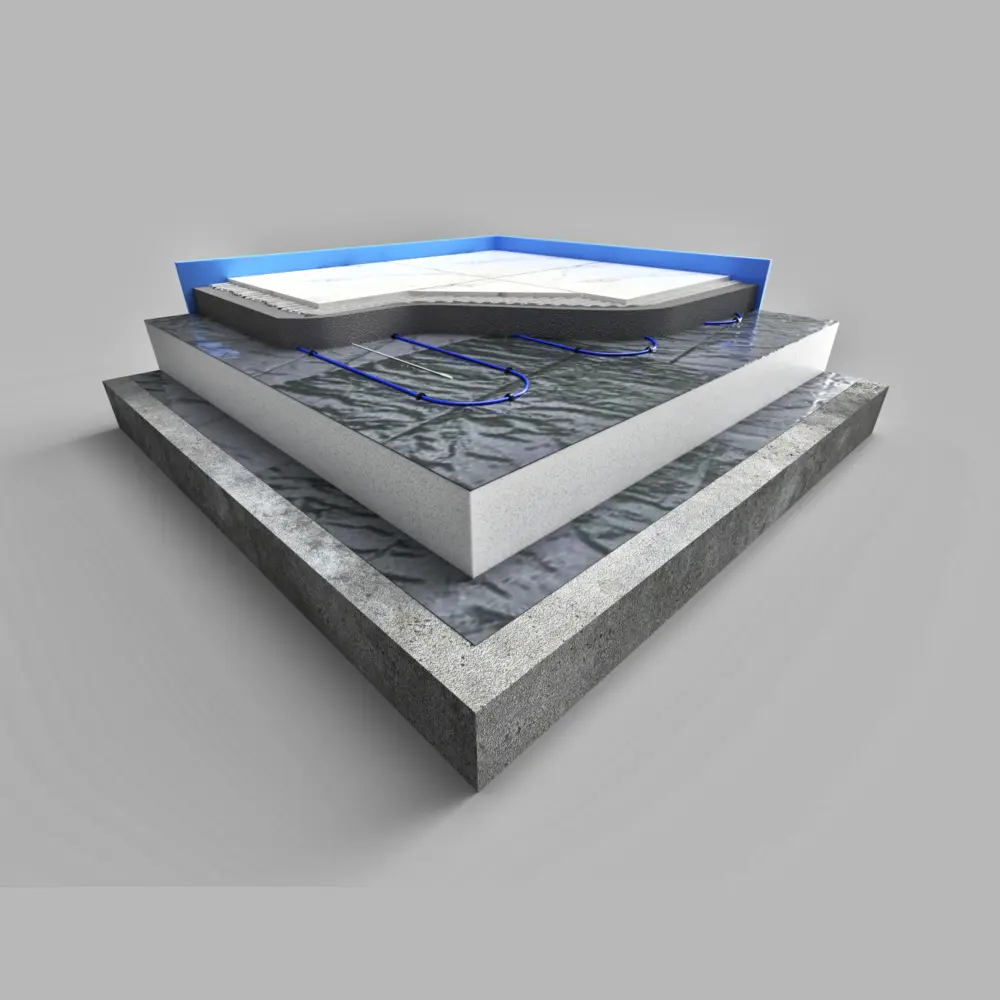

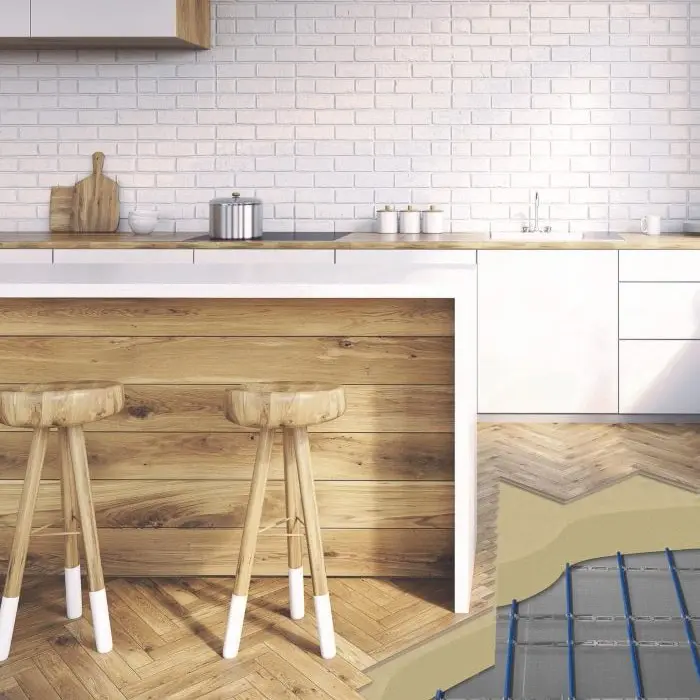

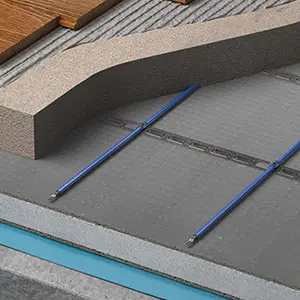

Laid into a fresh screed, this Warmup inscreed heating kit covers 3.8 to 7.6m² with 38m of cable rated at 760W. That range takes in the open floor of a family bathroom or a small kitchen once the fitted units are left out. The inscreed cable belongs to Warmup's Inscreed cable system and goes into the screed itself, so it is fitted while a new floor is being laid.
Spacing sets the output. Spread across the full 7.6m², 760W works out at 100W/m²; pulled in to 3.8m², the same cable gives 200W/m². Both figures sit inside the stated rating of 100 to 210W/m² for this electric underfloor heating.
Specification
- Warmup code: WIS760

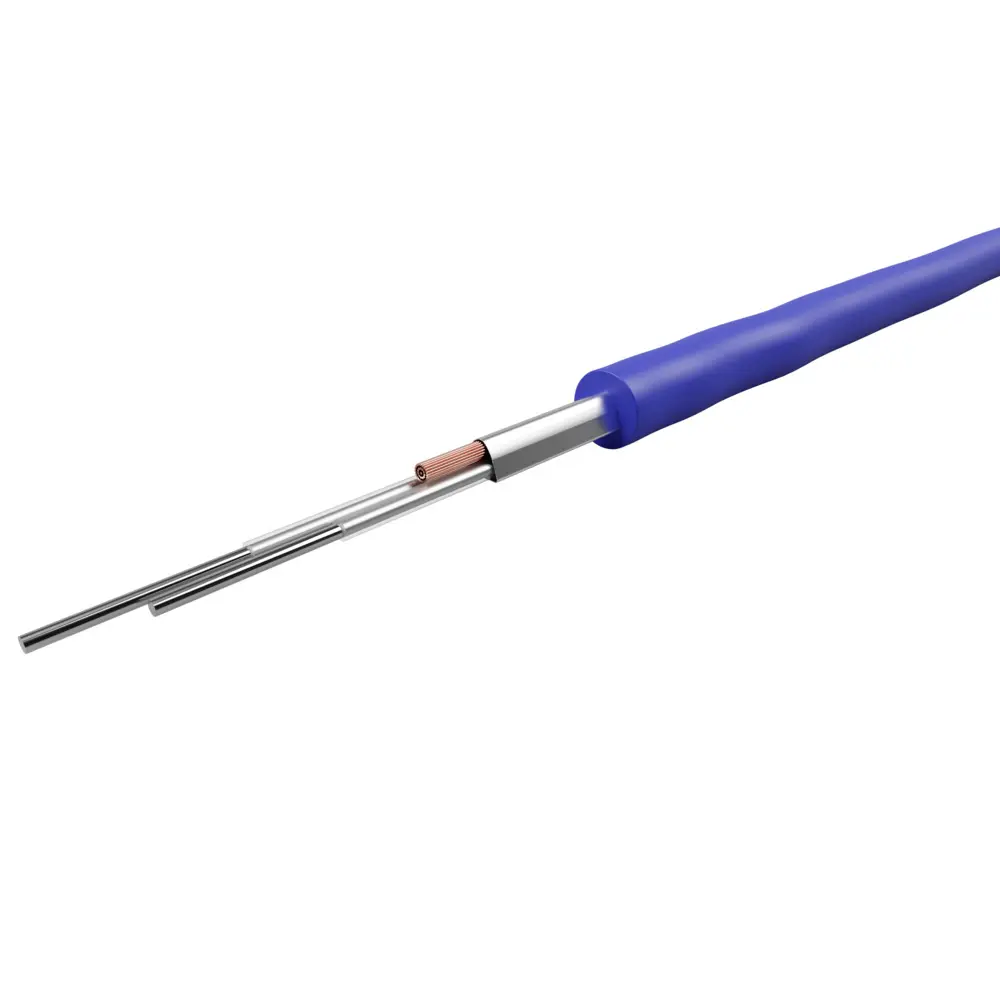

- In-screed cable: 38m, 760W
- Floor area covered: 3.8 to 7.6m²
- Output range: 100 to 210W/m²
- Cable thickness: 6mm
- Cold tail lead: 2.5m
- Mains: 230V, 50Hz
- Standards: BEAB approved, European compliant, CE marked
Measure the open floor before choosing between this underfloor heating cable and the 5.0 to 10m² kit, and leave the final wiring to a qualified electrician.
Specification 4
Specification
- Product code
- WIS760
- Brand
- Warmup
- Range
- Inscreed cable system
- Size
- 3.8 - 7.6m²
Documents 4
Documents
Delivery and returns
Delivery and returns
Delivery is charged by weight band, one rate UK-wide, and is free over £500. Ordered from the maker when you pay.
Unfitted items can be returned within 28 days in the original packaging. Start a return with your order number and the address you ordered with — no account needed.
From the manufacturer 15
From the manufacturer
- Approved
- BEAB & European compliant and CE marked
- Bar code
- 5034526004759
- Guarantee
- Life Time Limited & SafetyNet™ Installation Guarantee
- Warmup ID
- 1853
- Weight (g)
- 2,150
- Area coverage
- 3.8 - 7.6m2
- Output rating
- 100 to 210W/m²
- Box Width (mm)
- 390
- Cable diameter
- 6mm
- Dimension unit
- mm
- Box Height (mm)
- 48
- Box Length (mm)
- 400
- Cold tail length
- 2.5 m
- Operating voltage
- 230V: 50Hz
- Short description
- In-Screed Cable 38m 760W
