Warmup · Heating 17 variants

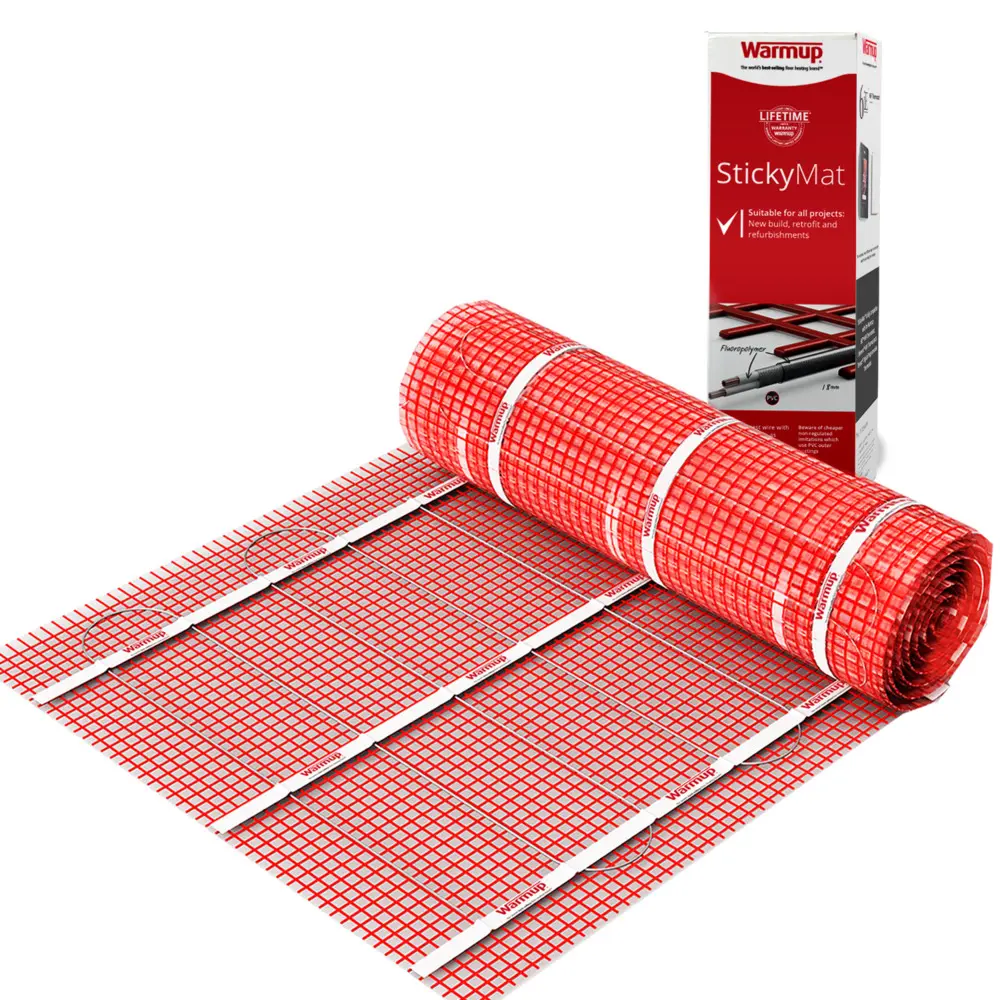

StickyMat Electric underfloor Mat heating - 150W/10m²
1500watts Warmup StickyMat at 10m² (150W/m²) | Output 150 W/m² and 200W/m² | Voltage 230V: 50Hz
£648.22 Inc. VAT
SPM10
Or 3 payments of £216.08,
interest-free. Subject to status.
Size · 10m²
Description
Description
At 150W/m² across 10m², this Warmup StickyMat electric underfloor heating mat adds up to a 1500-watt load. That is a mat size for the open floor of a kitchen or a larger bathroom, once fitted units and sanitaryware have been taken out of the measurement.
Because the whole mat draws 1500 watts, ask your electrician to confirm how it will be supplied and protected on your circuit. The mat itself is 3mm thick and runs from 230V: 50Hz, and its wire carries advanced fluoropolymer (ETFE) insulation inside and out. A 3m cold tail links it to the connection point. If your clear floor comes out nearer nine square metres, the 9m² StickyMat is the closer match.
Specification
- From: Warmup StickyMat System
- Heated area: 10m²
- Rating: 150W/m²
- Total load: 1500 watts
- Runs from: 230V: 50Hz mains
- Mat build-up: 3mm
- Lead to the supply (cold tail): 3m
- Insulation: ETFE advanced fluoropolymer, inner and outer
Electric underfloor heating must be wired in by a qualified electrician, and with a 1500-watt mat that circuit check matters.
Specification 6
Specification
- Product code
- SPM10
- Brand
- Warmup
- Range
- StickyMat System
- Size
- 10m²
- Delivery size
- Small parcel (Up to 2 kg)
- Width
- 500 mm
From the manufacturer 10
From the manufacturer
- Output
- 150 W/m² and 200W/m²
- Barcode
- 5034526005633
- Voltage
- 230V: 50Hz
- Weight (g)
- 4,040
- Mat thickness
- 3mm
- Box Width (mm)
- 200
- Box Height (mm)
- 520
- Box Length (mm)
- 200
- Cold tail length
- 3m
- Inner Outer Insulation
- Advanced fluoropolymer (ETFE)
Documents 8
Documents
- Price guideuk pricelistPDF
- DocumentWarmup-IM-StickyMat TMP ENPDF
- DatasheetWarmup-Tech-Sheet-E01-StickyMat-V1.1-0916PDF
- Technical drawingCAD-Section-StickyMat-on-JoistsPDF
- Technical drawingCAD-Section-StickyMat-on-SlabPDF
- DocumentELECTRIC-SECTIONS-01-STICKY-MAT-CONCRETE-SUBFLOOR-1PDF
- DocumentELECTRIC-SECTIONS-01-STICKY-MAT-CONCRETE-SUBFLOOR-VINYL-1PDF
- DocumentELECTRIC-SECTIONS-02-MATTPDF
