Images are for illustration only. Colours and finishes can look different on screen, and fittings shown may not be included - please check the specification before ordering.
Warmup · Heating 17 variants

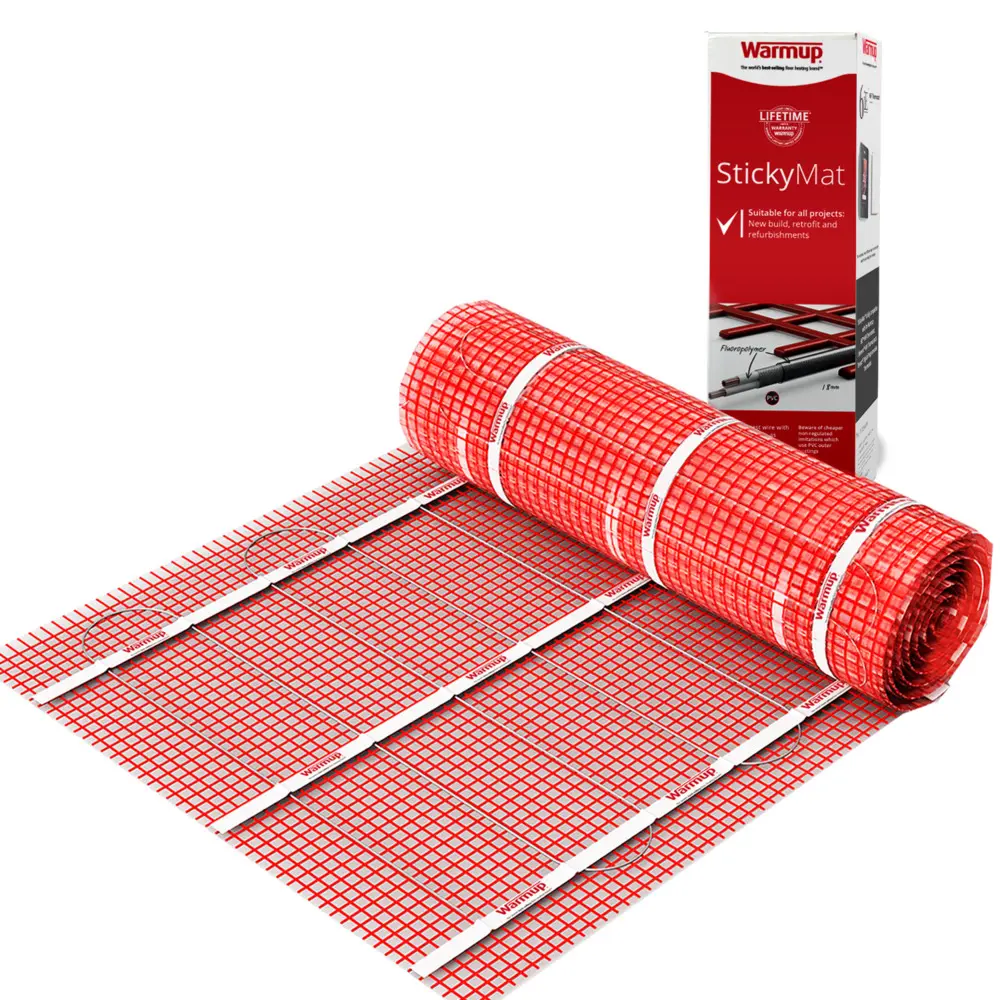

StickyMat Electric underfloor Mat heating - 150W/7m²
1050watts Warmup StickyMat at 7m2 (150W/m2) | Output 150 W/m² and 200W/m² | Voltage 230V: 50Hz
£515.24 Inc. VAT
SPM7
Size · 7m²
Description
Description
Clear floor of about 7m² is common in family bathrooms and modest kitchens, and it is the area this Warmup StickyMat 150W electric underfloor heating mat covers. Its total output is 1050 watts.
How the figures add up
The mat's rating is 150W/m², and 7m² multiplied by 150W gives the 1050W total. You need both numbers: the rating per square metre tells you how the heat is spread, while the total is what the electrician needs to size the circuit. The mat itself is 3mm thick and runs on 230V: 50Hz.
Specification
- Floor area: 7m²
- Output: 150W/m² (1050W for the whole mat)
- Volts: 230V: 50Hz
- Mat build-up: 3mm
- Unheated cold tail length: 3m
- Heating cable insulation: advanced fluoropolymer (ETFE), both inner and outer
- System: Warmup StickyMat System
- SKU: SPM7
Leave out the floor under any bath, shower tray or fitted cabinets when you measure, and ask a qualified electrician to connect it.
From the manufacturer 10
From the manufacturer
- Output
- 150 W/m² and 200W/m²
- Barcode
- 5034526005602
- Voltage
- 230V: 50Hz
- Weight (g)
- 3,050
- Mat thickness
- 3mm
- Box Width (mm)
- 150
- Box Height (mm)
- 520
- Box Length (mm)
- 150
- Cold tail length
- 3m
- Inner Outer Insulation
- Advanced fluoropolymer (ETFE)
Specification 5
Specification
- Product code
- SPM7
- Brand
- Warmup
- Range
- StickyMat System
- Size
- 7m²
- Width
- 500 mm
Documents 8
Documents
- Price guideuk pricelistPDF
- DocumentWarmup-IM-StickyMat TMP ENPDF
- DatasheetWarmup-Tech-Sheet-E01-StickyMat-V1.1-0916PDF
- Technical drawingCAD-Section-StickyMat-on-JoistsPDF
- Technical drawingCAD-Section-StickyMat-on-SlabPDF
- DocumentELECTRIC-SECTIONS-01-STICKY-MAT-CONCRETE-SUBFLOOR-1PDF
- DocumentELECTRIC-SECTIONS-01-STICKY-MAT-CONCRETE-SUBFLOOR-VINYL-1PDF
- DocumentELECTRIC-SECTIONS-02-MATTPDF
Delivery and returns
Delivery and returns
Free UK delivery on this item. Ordered from the maker when you pay.
Unfitted items can be returned within 28 days in the original packaging. Start a return with your order number and the address you ordered with — no account needed.
