Warmup · Heating 17 variants

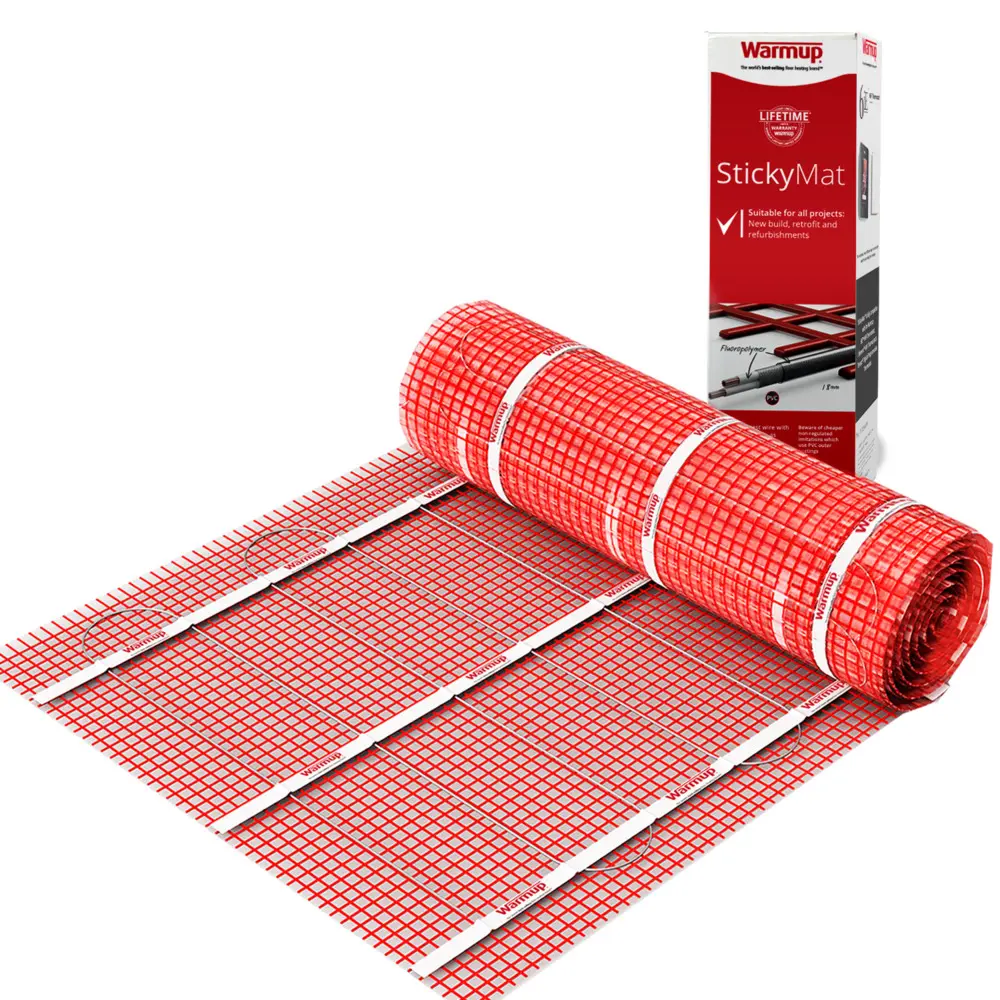

StickyMat Electric underfloor Mat heating - 150W/4m²
600watts Warmup StickyMat at 4m² (150W/m²) | Output 150 W/m² and 200W/m² | Voltage 230V: 50Hz
£324.12 Inc. VAT
SPM4
Size · 4m²
Description
Description
A 4m² Warmup StickyMat at 150W per square metre suits a small bathroom or en-suite, drawing 600 watts across the whole mat. The code is SPM4, and it forms part of the StickyMat System from Warmup.
Mats come in fixed sizes, so the number to work from is the free floor rather than the full footprint of the room. Leave out the ground beneath the bath, the shower tray and any fitted vanity unit, and pick the electric underfloor heating mat that matches what remains. If the open floor comes to nearer six square metres, the 6m² StickyMat is the next size to look at.
Specification
- Area heated: 4m²
- Load: 600 watts at 150W/m²
- StickyMat System ratings: 150 W/m² and 200W/m²
- Electrical: 230V: 50Hz
- Mat depth: 3mm
- Cold tail to the supply: 3m
- Insulation of the cable, inside and out: advanced fluoropolymer (ETFE)
- Warmup product code: SPM4
Draw the room to scale before you buy, and ask a qualified electrician to wire it to the 230V supply.
From the manufacturer 10
From the manufacturer
- Output
- 150 W/m² and 200W/m²
- Barcode
- 5034526005572
- Voltage
- 230V: 50Hz
- Weight (g)
- 1,910
- Mat thickness
- 3mm
- Box Width (mm)
- 150
- Box Height (mm)
- 520
- Box Length (mm)
- 150
- Cold tail length
- 3m
- Inner Outer Insulation
- Advanced fluoropolymer (ETFE)
Specification 5
Specification
- Product code
- SPM4
- Brand
- Warmup
- Range
- StickyMat System
- Size
- 4m²
- Width
- 500 mm
Documents 8
Documents
- Price guideuk pricelistPDF
- DocumentWarmup-IM-StickyMat TMP ENPDF
- DatasheetWarmup-Tech-Sheet-E01-StickyMat-V1.1-0916PDF
- Technical drawingCAD-Section-StickyMat-on-JoistsPDF
- Technical drawingCAD-Section-StickyMat-on-SlabPDF
- DocumentELECTRIC-SECTIONS-01-STICKY-MAT-CONCRETE-SUBFLOOR-1PDF
- DocumentELECTRIC-SECTIONS-01-STICKY-MAT-CONCRETE-SUBFLOOR-VINYL-1PDF
- DocumentELECTRIC-SECTIONS-02-MATTPDF
