Warmup · Heating 17 variants

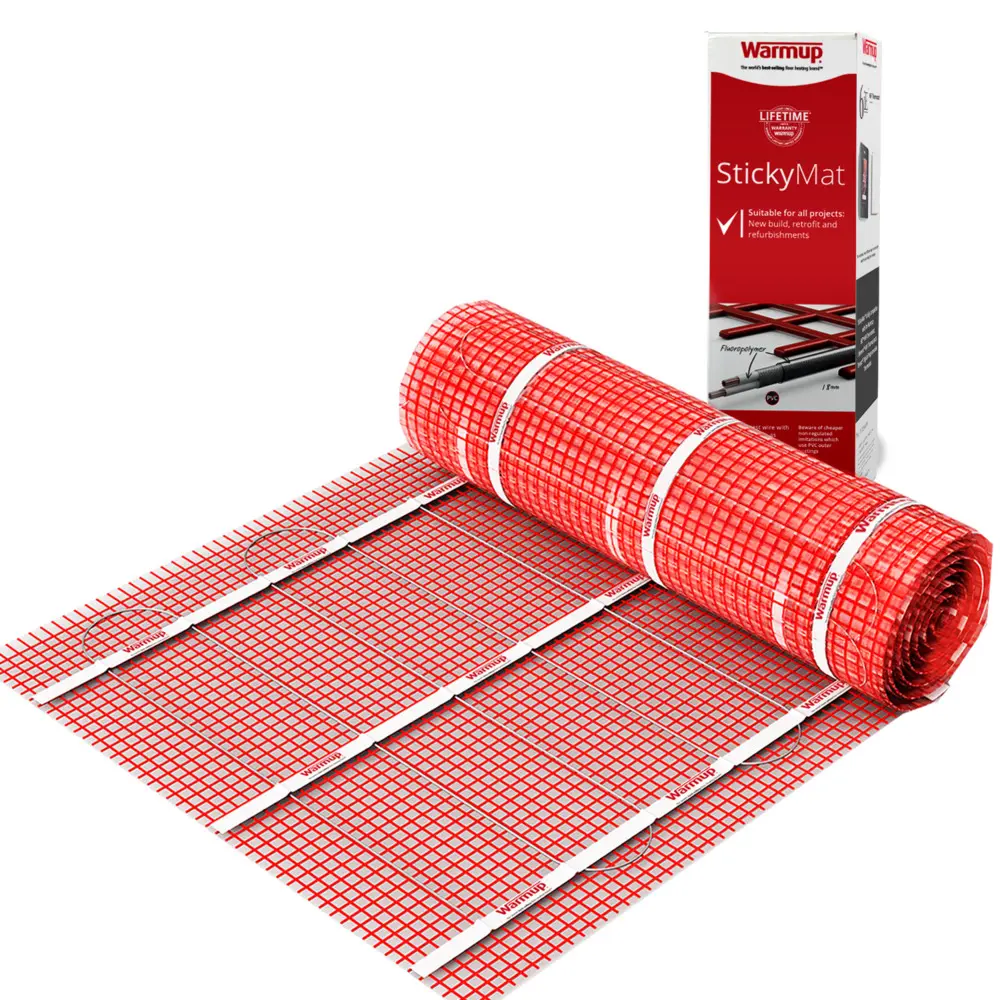

StickyMat Electric underfloor Mat heating - 150W/5m²
750watts Warmup StickyMat at 5m² (150W/m²) | Output 150 W/m² and 200W/m² | Voltage 230V: 50Hz
£379.19 Inc. VAT
SPM5
Size · 5m²
Description
Description
Model SPM5 is the 5m² size of the Warmup electric underfloor heating mat kit at 150W, drawing 750 watts across the whole mat. That covers the open floor of a medium-sized bathroom, or the walkways of a small kitchen.
The StickyMat System is listed at 150 W/m² and 200W/m²; this is the 150W/m² version. At 3mm thick, the mat adds little height to the floor build-up, which matters when the new floor has to meet a door threshold or the flooring in the next room. Its heating cable is insulated inside and out with advanced fluoropolymer (ETFE), and a 3m cold tail runs to the connection point.
Because it is a mat rather than loose wire, the area is fixed, so getting the measurement right matters more.
Specification
- Product code: SPM5
- Mat area: 5m²
- Output: 150W/m², 750 watts in total
- System outputs listed: 150 W/m² and 200W/m²
- Thickness: 3mm
- Cold tail lead: 3m
- Mains: 230V: 50Hz
- Cable insulation: advanced fluoropolymer (ETFE)
Check that the free floor area is close to 5m² before ordering, and have a qualified electrician wire the mat in.
From the manufacturer 10
From the manufacturer
- Output
- 150 W/m² and 200W/m²
- Barcode
- 5034526005589
- Voltage
- 230V: 50Hz
- Weight (g)
- 2,180
- Mat thickness
- 3mm
- Box Width (mm)
- 150
- Box Height (mm)
- 520
- Box Length (mm)
- 150
- Cold tail length
- 3m
- Inner Outer Insulation
- Advanced fluoropolymer (ETFE)
Specification 5
Specification
- Product code
- SPM5
- Brand
- Warmup
- Range
- StickyMat System
- Size
- 5m²
- Width
- 500 mm
Documents 8
Documents
- Price guideuk pricelistPDF
- DocumentWarmup-IM-StickyMat TMP ENPDF
- DatasheetWarmup-Tech-Sheet-E01-StickyMat-V1.1-0916PDF
- Technical drawingCAD-Section-StickyMat-on-JoistsPDF
- Technical drawingCAD-Section-StickyMat-on-SlabPDF
- DocumentELECTRIC-SECTIONS-01-STICKY-MAT-CONCRETE-SUBFLOOR-1PDF
- DocumentELECTRIC-SECTIONS-01-STICKY-MAT-CONCRETE-SUBFLOOR-VINYL-1PDF
- DocumentELECTRIC-SECTIONS-02-MATTPDF
