Warmup · Heating 17 variants

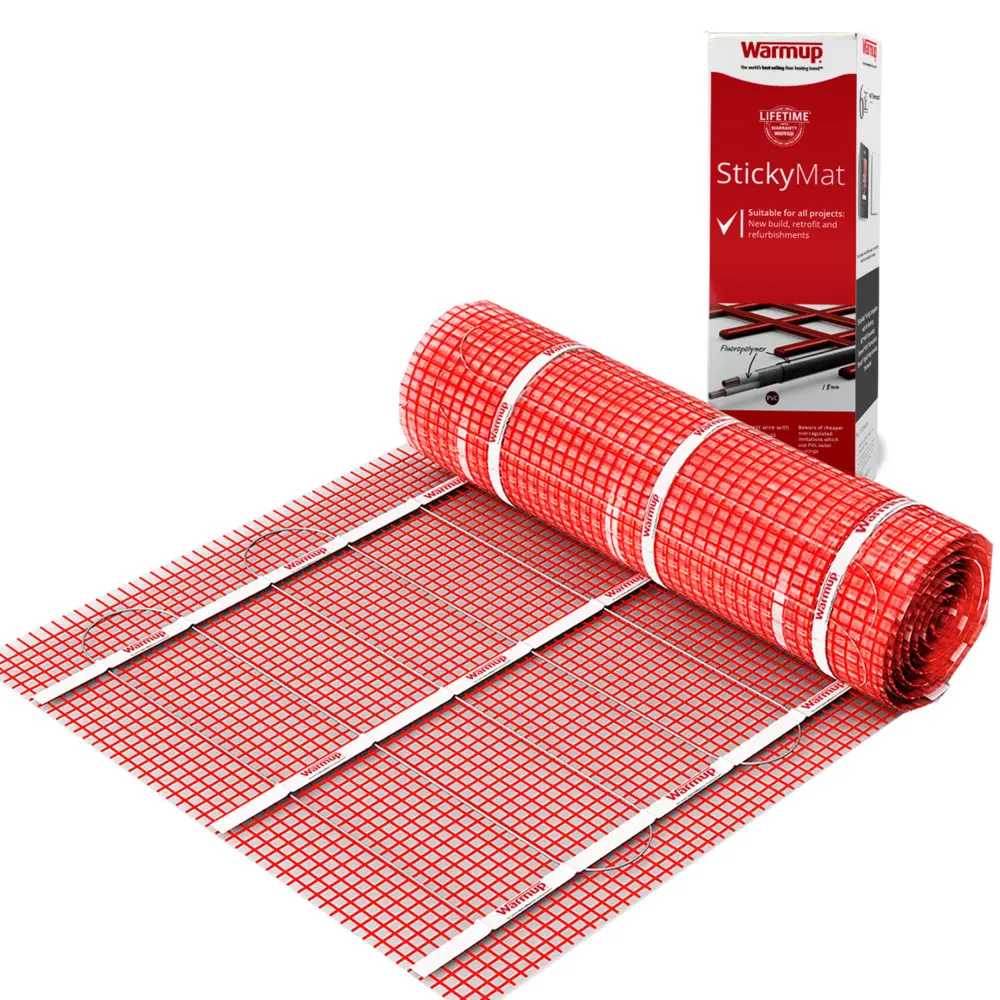

StickyMat Electric underfloor Mat heating - 150W/11m²
1650watts Warmup StickyMat at 11m² (150W/m²) | Output 150 W/m² and 200W/m² | Voltage 230V: 50Hz
£687.28 Inc. VAT
SPM11
Size · 11m²
Description
Description
This Warmup StickyMat underfloor heating mat covers 11m² at 150W/m², for a combined 1650 watts. A mat of this size is for a large stretch of open floor, such as a kitchen-diner or a bathroom with plenty of free space between the fittings.
Floor height is a practical worry on any renovation. With a mat thickness of 3mm, the effect on door clearances and thresholds is small, though the finished floor will still sit a little higher than before. The heating wire is insulated with advanced fluoropolymer (ETFE) on both layers, the mat runs on 230V: 50Hz, and the 3m cold tail reaches back to the supply. Picking between sizes? Compare your measured area with the 10m² and 12m² StickyMat mats as well.
Specification
- Brand and system: Warmup StickyMat
- Mat area: 11m²
- Watts per m²: 150
- Total output: 1650 watts
- Mains rating: 230V: 50Hz
- Profile: 3mm thick
- Lead-in (cold tail): 3m
- Insulation, both inner and outer: Advanced fluoropolymer (ETFE)
Check the finished floor height against your door thresholds, and book a qualified electrician for the connection.
Specification 5
Specification
- Product code
- SPM11
- Brand
- Warmup
- Range
- StickyMat System
- Size
- 11m²
- Width
- 500 mm
From the manufacturer 10
From the manufacturer
- Output
- 150 W/m² and 200W/m²
- Barcode
- 5034526005640
- Voltage
- 230V: 50Hz
- Weight (g)
- 4,340
- Mat thickness
- 3mm
- Box Width (mm)
- 200
- Box Height (mm)
- 520
- Box Length (mm)
- 200
- Cold tail length
- 3m
- Inner Outer Insulation
- Advanced fluoropolymer (ETFE)
Documents 8
Documents
- Price guideuk pricelistPDF
- DocumentWarmup-IM-StickyMat TMP ENPDF
- DatasheetWarmup-Tech-Sheet-E01-StickyMat-V1.1-0916PDF
- Technical drawingCAD-Section-StickyMat-on-JoistsPDF
- Technical drawingCAD-Section-StickyMat-on-SlabPDF
- DocumentELECTRIC-SECTIONS-01-STICKY-MAT-CONCRETE-SUBFLOOR-1PDF
- DocumentELECTRIC-SECTIONS-01-STICKY-MAT-CONCRETE-SUBFLOOR-VINYL-1PDF
- DocumentELECTRIC-SECTIONS-02-MATTPDF
