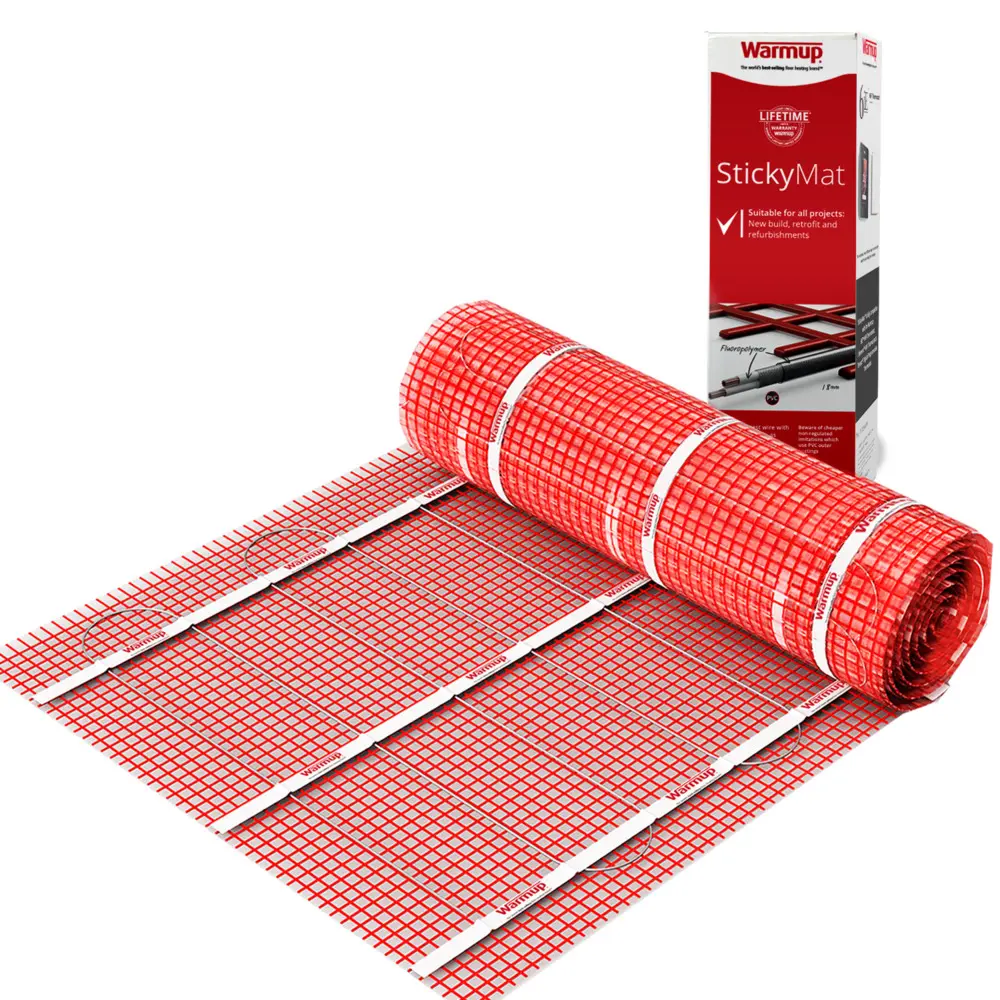

StickyMat Electric underfloor Mat heating - 150W/12m²
1800watts Warmup StickyMat at 12m² (150W/m²) | Output 150 W/m² and 200W/m² | Voltage 230V: 50Hz
£750.62 Inc. VAT
SPM12
Size · 12m²
Description
Description
At 12m², the Warmup StickyMat 150W is a mat for a big floor, such as a kitchen-diner or a larger bathroom with plenty of clear space. Every square metre gets 150W, so the whole mat comes to 1800 watts.
Planning the circuit
That 1800W figure is the number to pass to your electrician early on. A load of that size affects how the circuit is planned, and it is easier to settle before the floor is opened up. Like the rest of the StickyMat System, the mat runs from 230V: 50Hz, and its 3m cold tail is the unheated lead that reaches the supply point.
Specification
- Area covered by the mat: 12m²
- Rating: 150W/m², 1800W altogether
- Mains electricity: 230V: 50Hz
- Thickness of the mat: 3mm
- Cold tail: 3m unheated lead
- Wire insulation (inner and outer): advanced fluoropolymer (ETFE)
- Maker and system: Warmup, StickyMat System
- Product code: SPM12
If the free floor works out a little under 12m², compare it with the 11m² StickyMat before deciding, since the mat should not run beneath a bath or fitted units.
From the manufacturer 10
From the manufacturer
- Output
- 150 W/m² and 200W/m²
- Barcode
- 5034526009099
- Voltage
- 230V: 50Hz
- Weight (g)
- 4,950
- Mat thickness
- 3mm
- Box Width (mm)
- 200
- Box Height (mm)
- 520
- Box Length (mm)
- 200
- Cold tail length
- 3m
- Inner Outer Insulation
- Advanced fluoropolymer (ETFE)
Specification 5
Specification
- Product code
- SPM12
- Brand
- Warmup
- Range
- StickyMat System
- Size
- 12m²
- Width
- 500 mm
Documents 8
Documents
- Price guideuk pricelistPDF
- DocumentWarmup-IM-StickyMat TMP ENPDF
- DatasheetWarmup-Tech-Sheet-E01-StickyMat-V1.1-0916PDF
- Technical drawingCAD-Section-StickyMat-on-JoistsPDF
- Technical drawingCAD-Section-StickyMat-on-SlabPDF
- DocumentELECTRIC-SECTIONS-01-STICKY-MAT-CONCRETE-SUBFLOOR-1PDF
- DocumentELECTRIC-SECTIONS-01-STICKY-MAT-CONCRETE-SUBFLOOR-VINYL-1PDF
- DocumentELECTRIC-SECTIONS-02-MATTPDF
