Warmup · Heating 17 variants

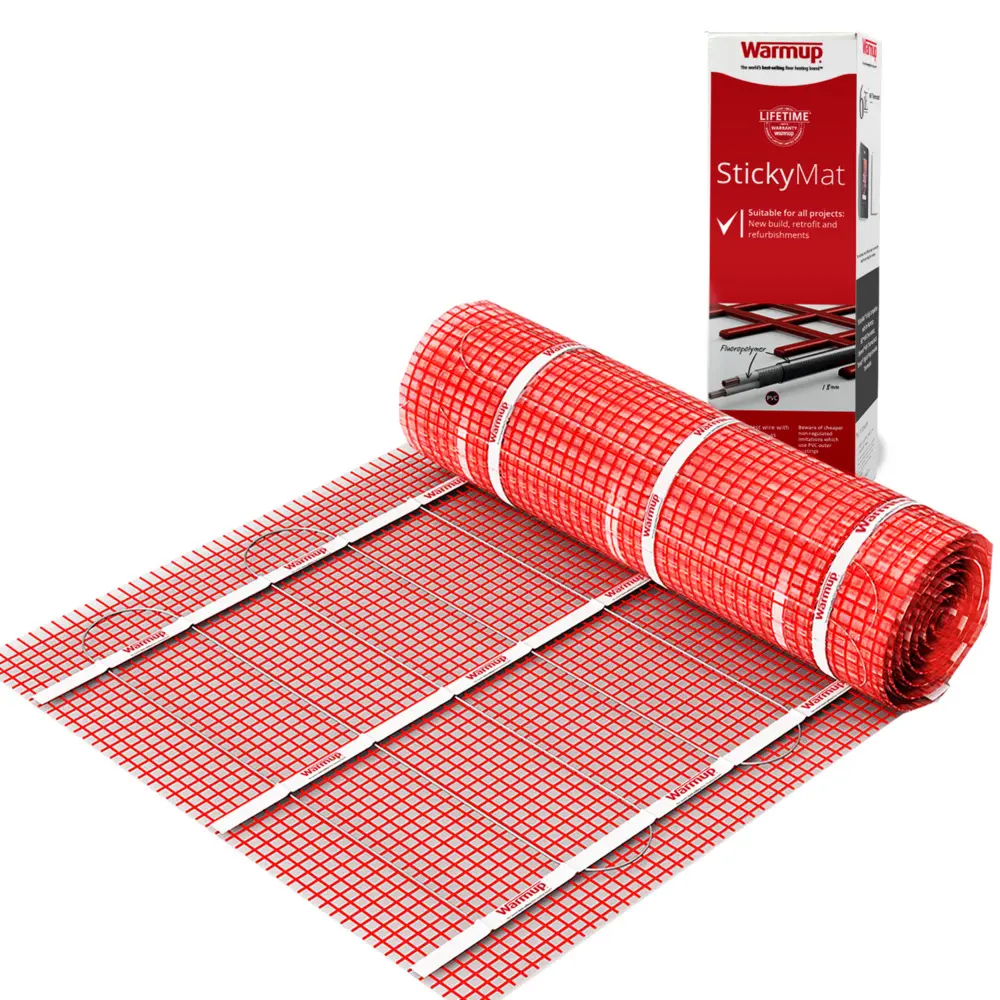

StickyMat Electric underfloor Mat heating - 150W/6m²
900watts Warmup StickyMat at 6m² (150W/m²) | Output 150 W/m² and 200W/m² | Voltage 230V: 50Hz
£447.76 Inc. VAT
SPM6
Size · 6m²
Description
Description
Kitchens and bathrooms with about six square metres of open floor are the target for the Warmup StickyMat 150W in its 6m² size. Spread over that area, the mat uses 900 watts in total.
Power and wiring
Nine hundred watts is a real electrical load, so the electrician fitting it will want to check the circuit it joins. The mat runs from 230V: 50Hz and has a 3m cold tail between the heated section and the connection. The StickyMat System has two outputs, 150 W/m² and 200W/m², and this mat is the lower of the pair.
Underneath the floor finish, it adds a layer just 3mm deep. The cable inside carries advanced fluoropolymer (ETFE) insulation on both its inner and outer layers.
Specification
- Size of heated area: 6m²
- Total wattage: 900 watts (150W/m²)
- Power supply: 230V: 50Hz
- Cold tail: 3m, to the connection point
- Mat build-up: 3mm thick
- Cable insulation (inner and outer layers): advanced fluoropolymer (ETFE)
- Range: Warmup StickyMat System, SPM6
Only a qualified electrician should connect it, so arrange a visit before the new floor is laid.
Specification 5
Specification
- Product code
- SPM6
- Brand
- Warmup
- Range
- StickyMat System
- Size
- 6m²
- Width
- 500 mm
From the manufacturer 10
From the manufacturer
- Output
- 150 W/m² and 200W/m²
- Barcode
- 5034526005596
- Voltage
- 230V: 50Hz
- Weight (g)
- 2,400
- Mat thickness
- 3mm
- Box Width (mm)
- 150
- Box Height (mm)
- 520
- Box Length (mm)
- 150
- Cold tail length
- 3m
- Inner Outer Insulation
- Advanced fluoropolymer (ETFE)
Documents 8
Documents
- Price guideuk pricelistPDF
- DocumentWarmup-IM-StickyMat TMP ENPDF
- DatasheetWarmup-Tech-Sheet-E01-StickyMat-V1.1-0916PDF
- Technical drawingCAD-Section-StickyMat-on-JoistsPDF
- Technical drawingCAD-Section-StickyMat-on-SlabPDF
- DocumentELECTRIC-SECTIONS-01-STICKY-MAT-CONCRETE-SUBFLOOR-1PDF
- DocumentELECTRIC-SECTIONS-01-STICKY-MAT-CONCRETE-SUBFLOOR-VINYL-1PDF
- DocumentELECTRIC-SECTIONS-02-MATTPDF
